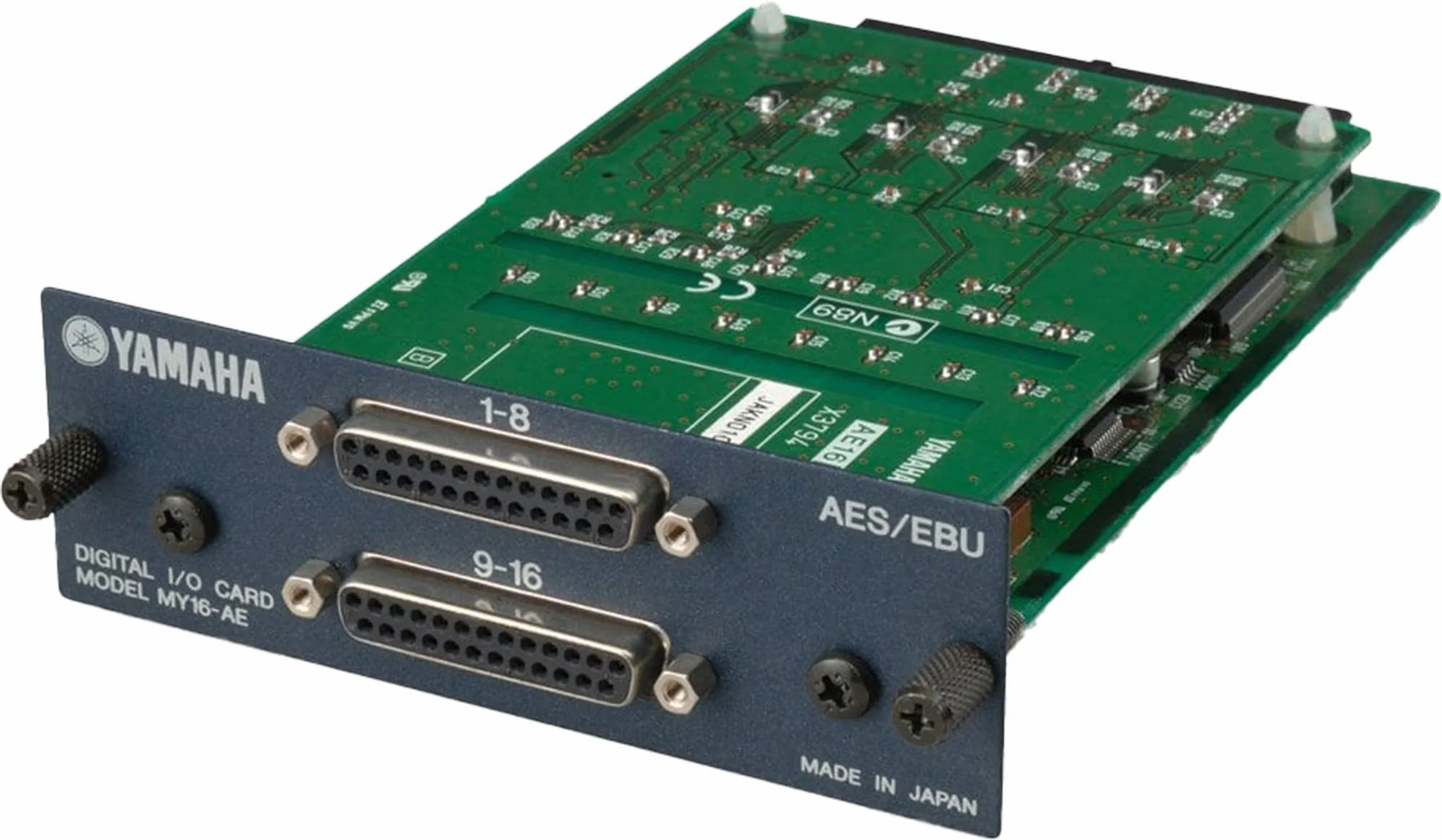

Yamaha MY16-AE AES/EBU

The Yamaha MY16-AE is an optional digital I/O card for compatible Yamaha digital mixing consoles and signal processors. It provide 16 inputs and 16 outputs for 24-bit, 44.1/48 kHz uncompressed AES/EBU compliant digital audio.

Features:

• 24-bit resolution, 16-in/16-out AES/EBU interface (8-in/8-out at 96kHz)
• 2 x D-sub 25 pin connectors
• Dimensions: 120mm x 40mm x 176mm (4.7" x 1.6" x 6.9")

Specifications

• Channel Count: 16IN / 16OUT
• Format: AES/EBU
• Connector: 2 x D-sub 25 pin
• Resolution: 24-bit
