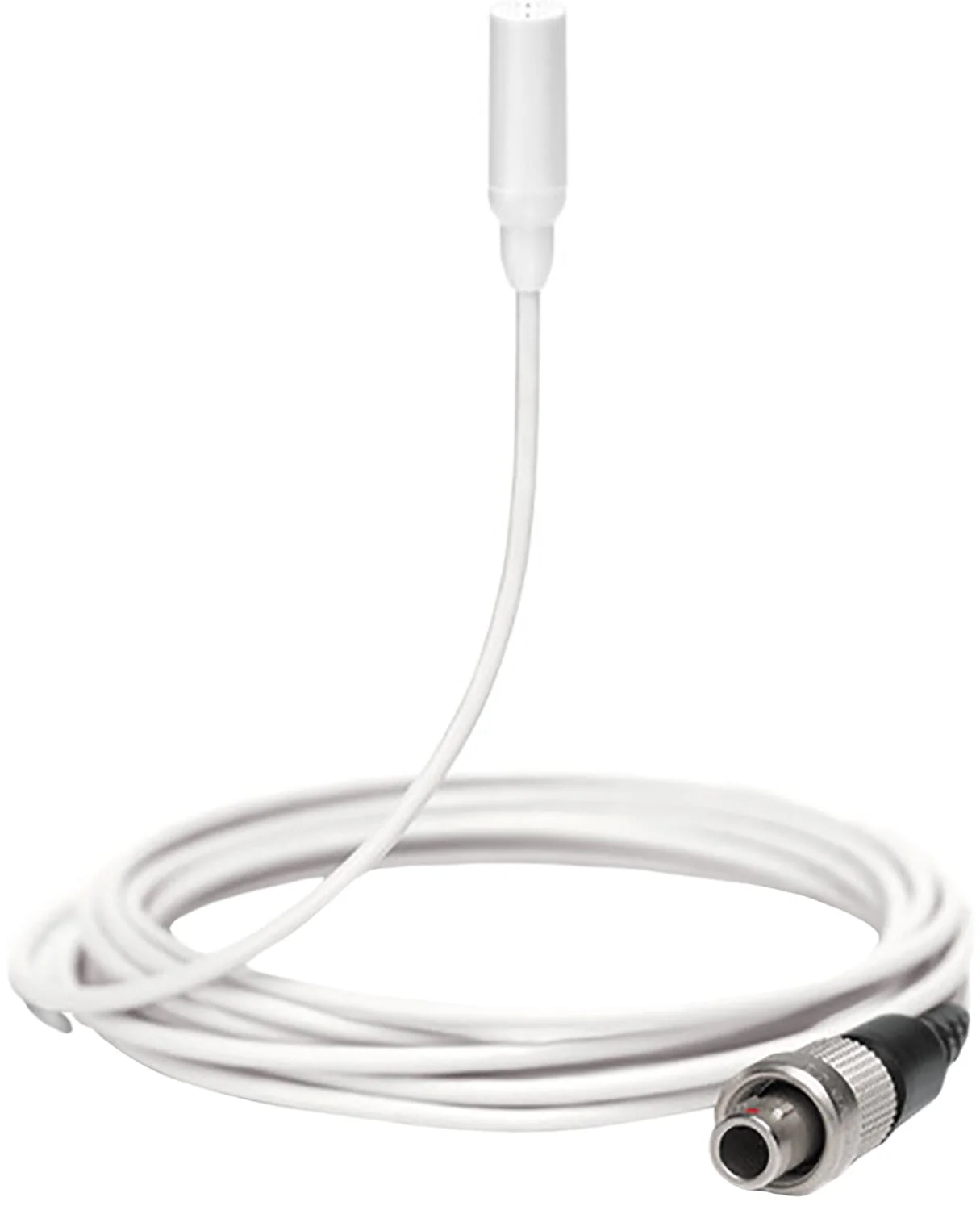

Shure TL48W/O-LEMO-A TwinPlex Omnidirectional Lavalier Microphone - LEMO3 with Accessories - White

The TwinPlex™ TL48 offers a tailored response with a mid-range rise that’s ideal for speech and dialogue applications, such as film and TV. Designed with leading audio professionals’ input, the TL48 is easily concealed in a costume or directly against the skin under wardrobe, and offers extensive accessories to ensure quick, easy, and secure mounting—all with no impact on sound quality.

Features:

• With a paintable, fixed frequency cap and mid-band boost that accentuates dialogue, the TL48 is ideal for film and TV applications
• Improved off-axis consistency, due to the patent pending dual-diaphragm design, yields accurate reproduction regardless of vocal source position or movement
• Best-in-class low self-noise and dynamic range for cleaner audio production
• Fixed frequency cap with internal hydrophobic woven lining resists sweat and moisture
• Paintable 1.6 mm cable that is immune to memory effect and kinks
• Dual redundant ground in cable serves as secondary shield for longevity
• Sound signature: Tailored for dialogue (6dB mid-band boost at about 7kHz)
• Sensitivity: Low
• Colors: White
• Connectors: LEMO
• Accessories: Available with accessories

Specifications:

• Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20 Hz to 20 kHz
• Sensitivity: -45.0 dBV (5.62 mV) at 1kHz
• Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
• Signal-To-Noise Ratio: 69.5 dB
• Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
• Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
• Dynamic Range: 117.5 dB typical
• Microphone Current Draw: 120 to 240 μA, typical
• Bias Voltage Recommended Operating Voltage: 5 VDC
• Housing: Molded ABS
• Polarity: Positive pressure at diaphragm leads to negative voltage with respect to ground
• Cable Diameter: 1.6 mm
• Cable Length: 66 in. (1.67 m)
• Microphone Length: 19 mm
• Microphone Diameter: 5.6 mm
• Net Weight with Cable: 12.0 g (0.42 oz.)
