Shure P9T=-H21 P9T Wireless Transmitter for PSM900 Personal Monitor System - H21 Band

Shure’s P9T is a half-rack, wireless transmitter used in conjunction with the P9RA+ Bodypack receiver as part of the PSM® 900 Wireless Personal Monitor System.

The P9T Wireless Transmitter combines state-of-the-art technology with an ideal set of features for professional monitoring applications of any kind, including IEM and IFB applications.

Features:

• Half-Rack Design
• Patent-Pending Cue Mode Technology
• Scan and Sync IR Link
• RF Mute Switch
• XLR/TRS Combo Inputs
• Headphone and Loop Outputs
• Input Gain Control with LED Meters

Specifications:

• Frequency Band: H21: 542 to 578 MHz
• Output Power: 10/50/100 mW, Selectable (Regionally Dependent)
• Output Impedance: 50 Ohms (RF, Typical)
• Input Level: +4 dBu and -10 dBV, Switchable

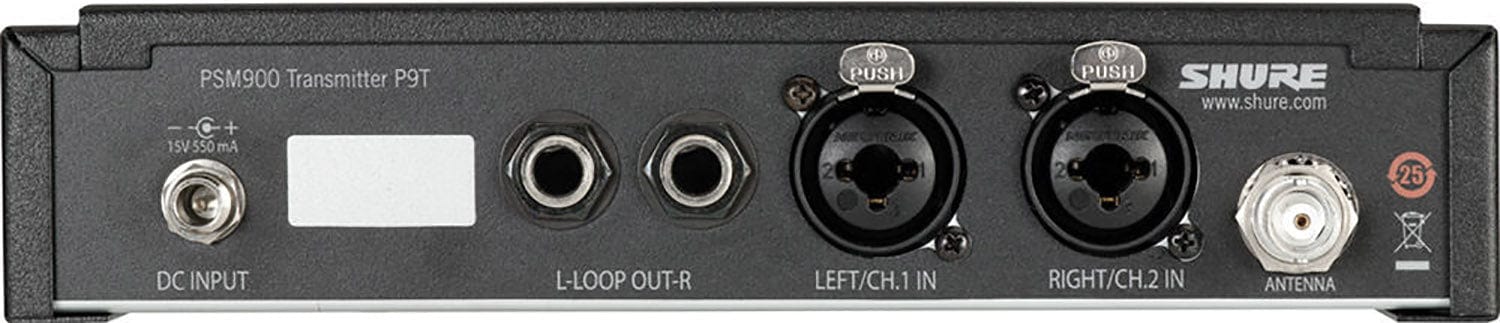

• Connectors:
  • 2 x XLR-TRS Combo Inputs
  • 2 x 1/4" Loop Outputs
  • 1 x DC Power Input
  • 1 x Antenna Connector
  • 1 x 3.5 mm Headphone Jack
• Power Requirements: 415 mA, Typical (RF On, 100 mW Power Mode, No Audio)
• Dimensions: 7.75 x 6.5 x 1.6" / 19.7 x 16.6 x 4.2 cm
• Weight: 1.9 lb / 850 g
