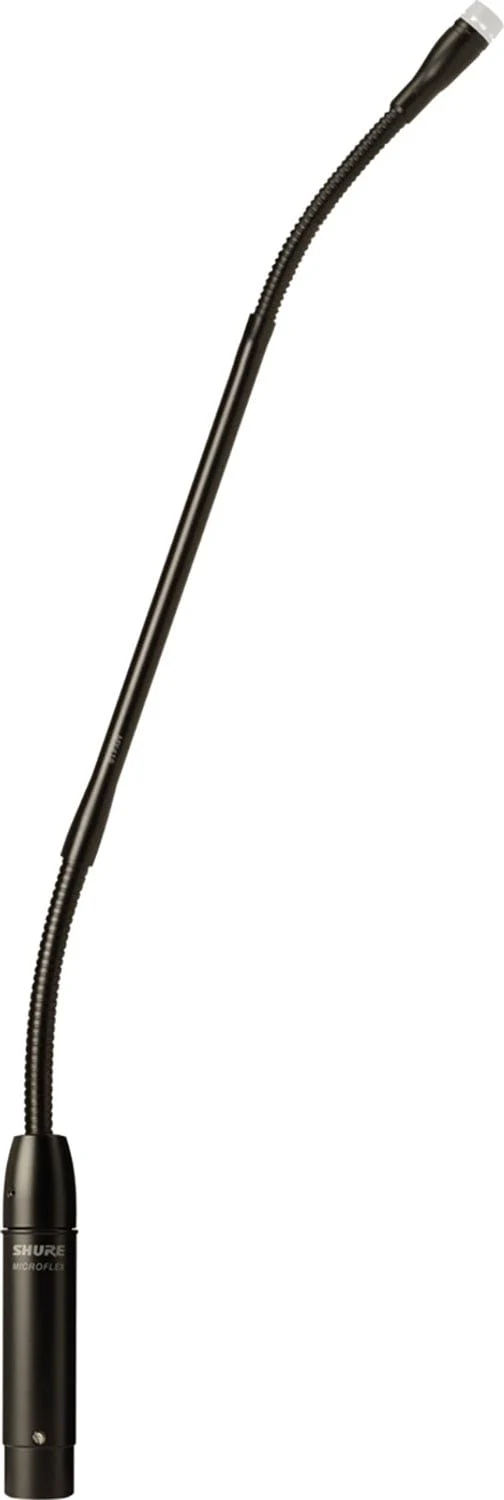

Shure MX412/N 12 Inch Microflex Standard Gooseneck Condenser Microphone - No Cartridge - Preamplifier

Gooseneck microphone offers interchangeable cartridges and enhanced length and flexibility for reliably clear sound reproduction. It features high sensitivity and maximum resistance to electromagnetic hum and RF interference, even over long cables.

Features:

• Engineered to capture and inspire.
• Gooseneck length: 12 inch (30.5 cm)
• Interchangeable cartridges provide the right polar pattern for every application
• Locking flange mount for permanently securing microphone to surfaces
• Snap-fit foam windscreen
• Shock mount provides over 20 dB isolation from surface vibration noise
• Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
• Balanced, transformerless output for increased immunity to noise over long cable runs
• New RF filtering

Specifications:

• Frequency Response: 50 Hz to 17 kHz
• Output Impedance (at 1000 Hz): Rated at 150 ? (180 ? actual)
• Open Circuit Sensitivity (at 1 kHz, ref. 1V/Pa): -33.5 dB (21.1 mV)
• Maximum SPL (1 kHz at 1% THD, 1 kOhm load): 122.7 dB
• Equivalent Output Noise (A-weighted): 26.5 dB SPL
• Signal to Noise Ratio (referenced at 94 dB SPL): 67.5 dB
• Dynamic Range at 1 kOhm Load: 96.2 dB
• Common Mode Rejection: 45.0 dB minimum
• Mute Switch Attenuation (switched models only): 50.0 dB minimum
• Preamplifier Output Clipping Level (1% THD): –6.0 dBV (0.5 V)
• Polarity: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector.
• Power Requirements: 11 to 52 Vdc phantom, 2.0 mA
• Environmental Requirements
• Operating Temperature Range: –18° C to 57° C (0° F to 135° F)
• Relative Humidity: 0 to 95%
• Dimensions:
• Microphone:
• Gooseneck: 12" (30 cm)
• Head Diameter: 0.46" (11.68 mm)
• Base Length: 3.86" (98.04 mm)
• Base Diameter: 0.79" (20.07 mm)
• Mounting Flange
• Diameter: 2.62" (66.70 mm)
• Depth: 0.56" (14.40 mm)
