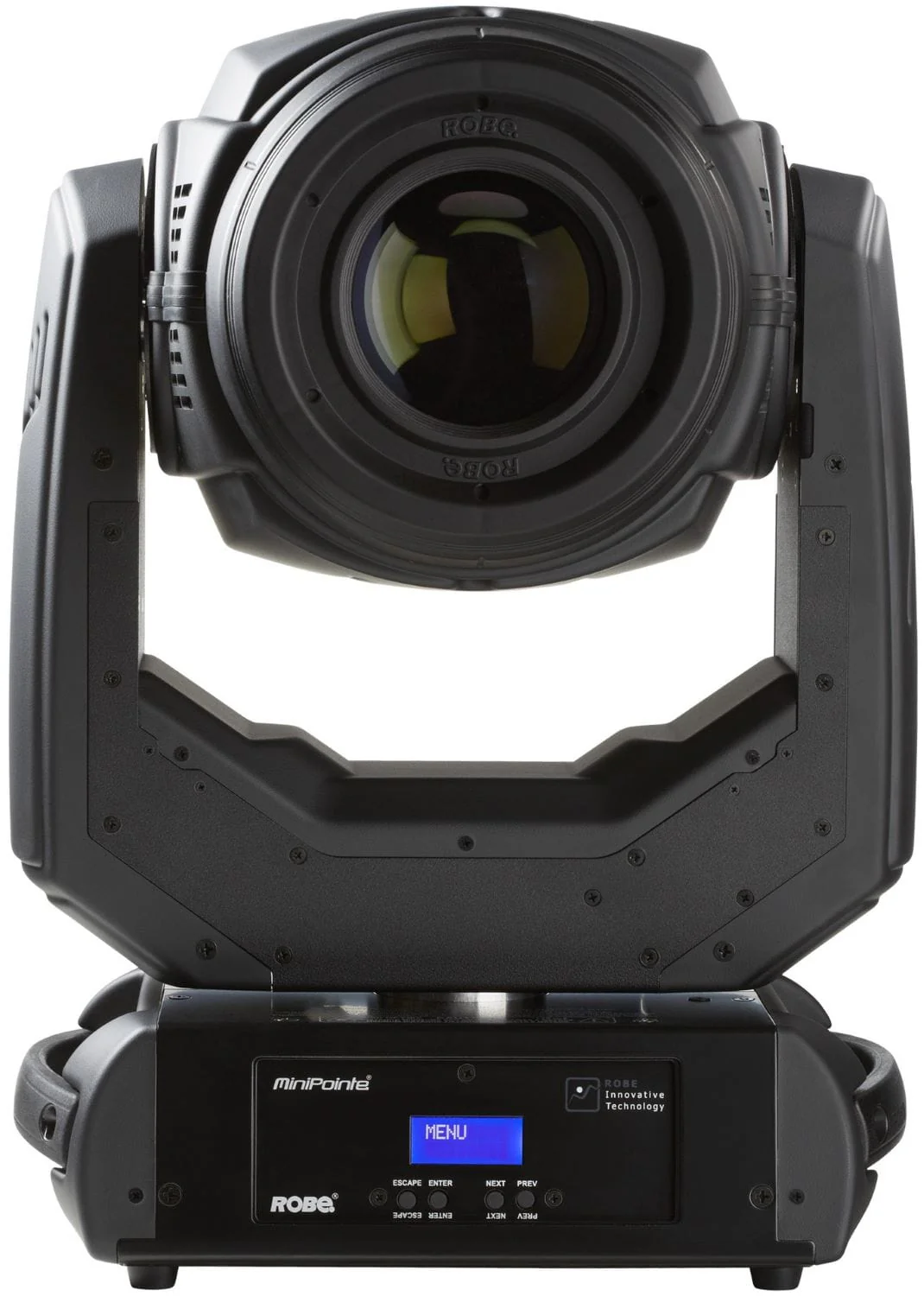

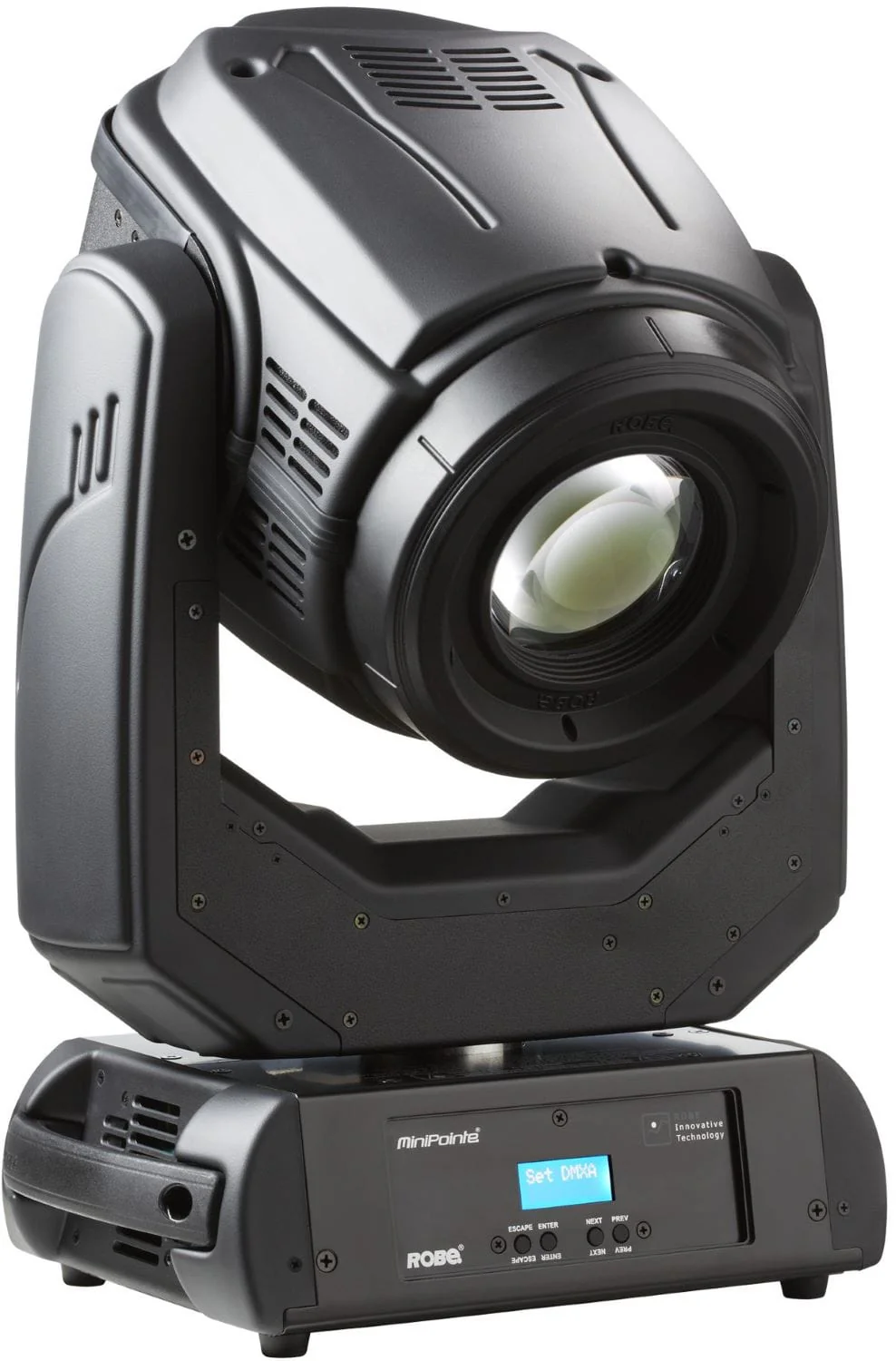

Robe miniPointe

MiniPointe is a tiny agile air cutter specifically designed to produce sharp beam and aerial effects especially in venues constrained by size.

Striking bright 0° parallel beams with glowing colours and static gobo wheel patterns can be multiplied by innovative Dynamic Flower Effect – DFE™ producing various different shapes of flower beams DFE™ dynamically changing in the air. Fine tuned short arc of the Osram Sirius HRI 140 W RO lamp and optimized optical system pushes with ease through haze and fog. Smooth variable frost filter and any one of the 13 rich colours is instantly ready to create a smooth even wash, extending the feature set of this petite but powerful Beam, Wash and Effect fixture.

Features:

• Light source - Osram Sirius HRI 140 W RO
• Light output - 4.960 lm, 400.000 lx @ 5m
• Zoom range - 3° fixed beam
• Effects - static gobo wheel, Dynamic Flower Effect, Beam Shaper

Specifications:

• Source:
  • Lamp: Discharge short arc lamp with integrated reflector
  • Approved model: Osram Sirius HRI 140 W RO
  • Life time : 6.000 hours
  • CRI: 65
  • CCT: 8000 K
  • Control: Automatic and remote on/off
  • Ballast: Electronic
• Optical system:
  • Robe’s proprietary optical design
  • Beam angle:
    • 3° on full open/hole
    • 0.7° / 1.2° / 1.8° with beam reducers

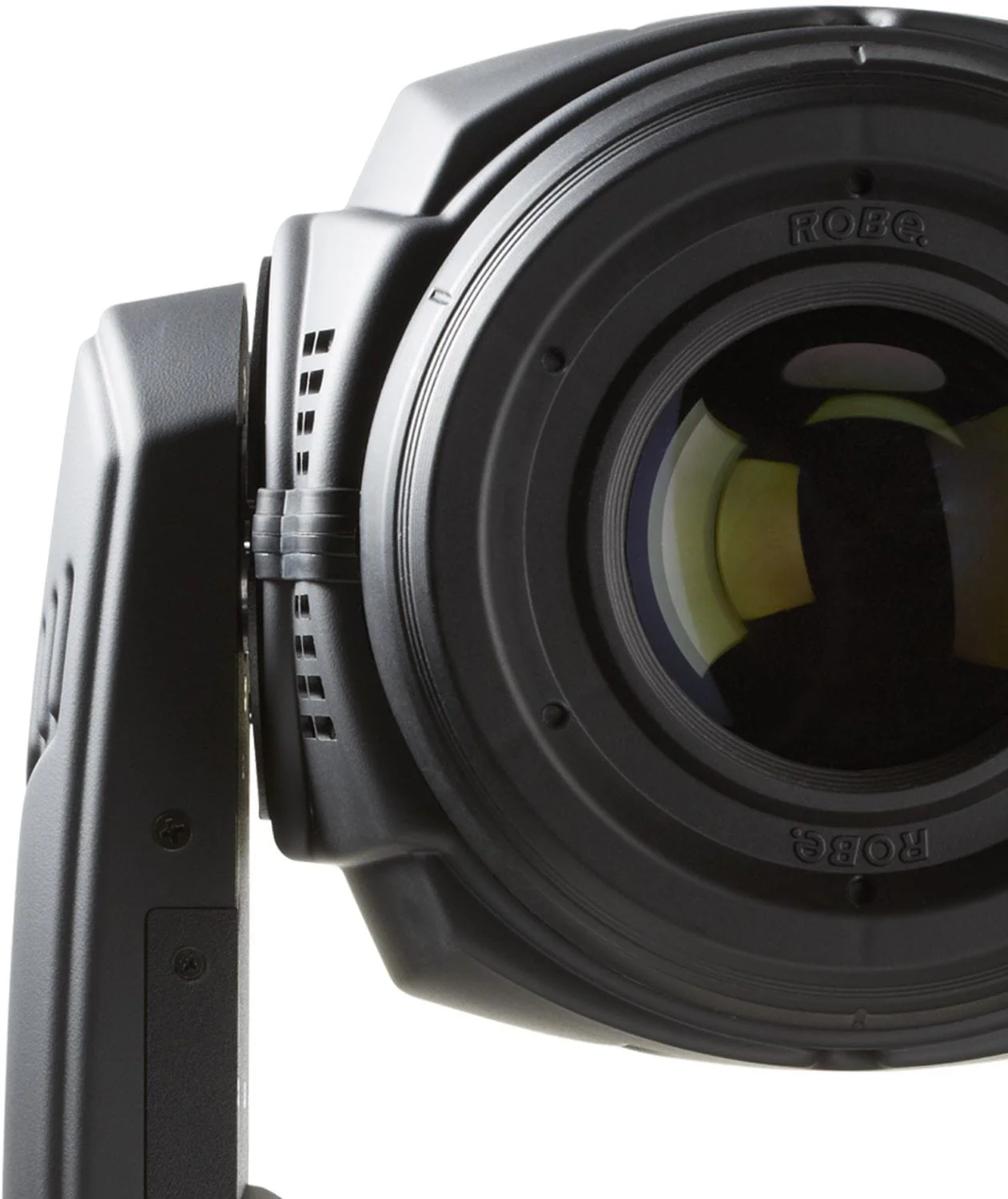

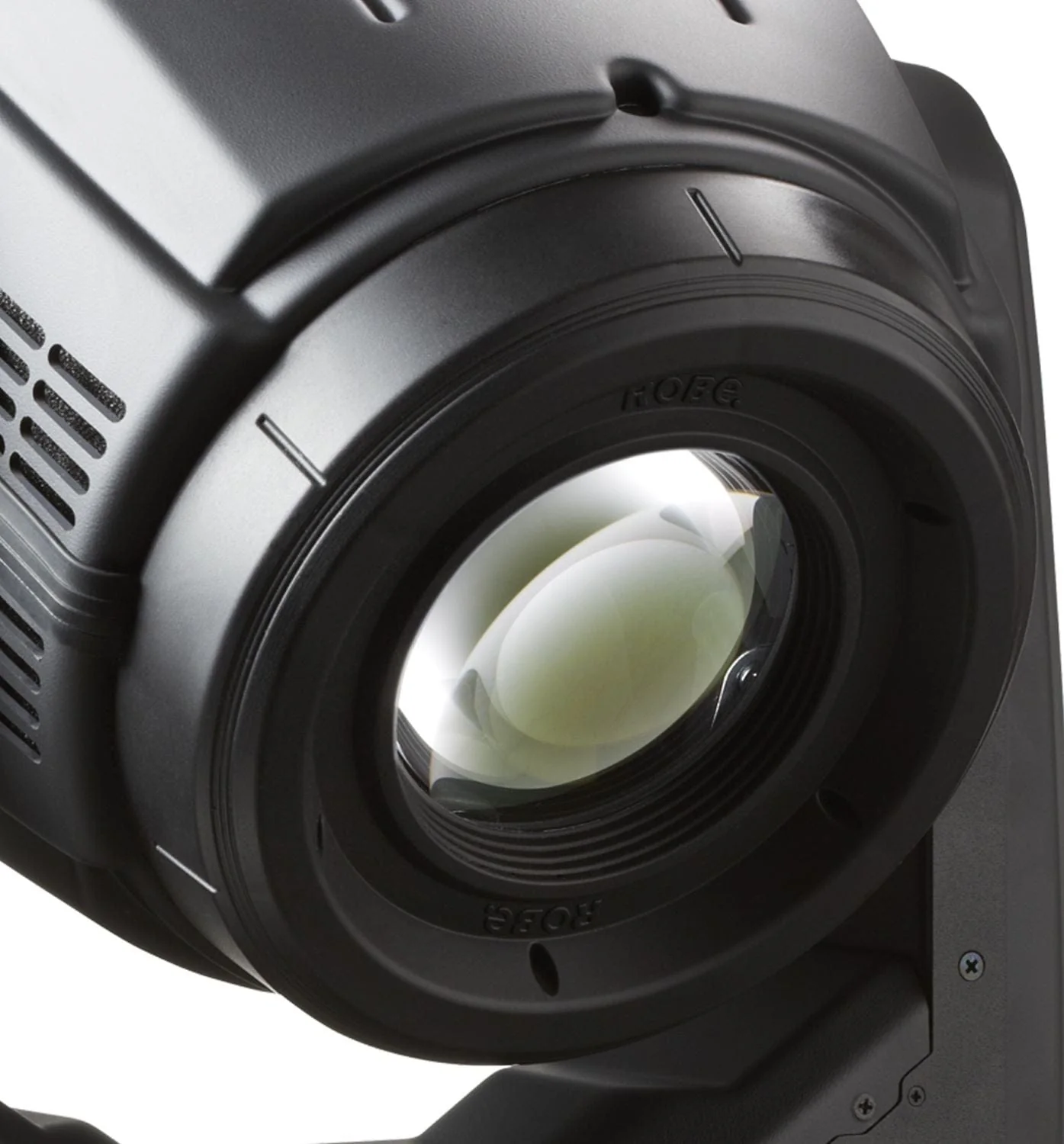

  • Output lens diameter: 85 mm
  • Fixture total lumen output: 4.960 lm
  • Light output: 400,000 lx @ 5 m distance
• Dynamic Effects and Features:
  • Colour wheel: 13 dichroic filters + white
  • Static Gobo wheel: 10 gobos + 3 beam reducers
  • DFE™ – Dynamic Flower Effect – creating spectacular beam effects in the air which can change shape, size and speed of rotation (patent pending)
  • Beam Shaper: Variable shape, indexable and rotatable
  • Frost effect: Separate, variable
  • Motorized focus
  • Pre-programmed random strobe & pulse effects
  • Dimmer: smooth dimming
• Control and programming:
  • Setting & Addressing: two-row LCD display & 4 control buttons
  • Wireless CRMX™ technology from Lumen Radio: On request
  • DMX Protocol modes: 3
  • Control channels: 22, 17, 27
  • Stand-alone operation
  • 3-editable programs, each up to 40 steps
  • Pan/Tilt resolution: 16 bit
  • Colour wheel positioning: 8 or 16 bit
  • Static gobo wheel positioning: 8 bit
  • Prism indexing & rotation: 8 bit
  • Frost: 8 bit
  • Focus: 8 or 16 bit
  • Dimmer: 8 or 16 bit
• Movement:
  • Tilt movement: 270°
  • Pan movement: 540°
  • Controllable speed of Pan/Tilt movement
• Static gobos: Aluminium wheel with fixed gobos: 10 gobos & 3 beam reducers
• Thermal specification:
  • Maximum ambient temperature: 45 °C (113 °F)
  • Maximum surface temperature: 75 °C (167 °F)
  • Minimum operating temperature: -5 °C (23 °F)
• Electrical specification and connections:
  • Power supply: Electronic auto-ranging
  • Input voltage range: 100–240 V, 50/60 Hz
  • Power consumption: 260 W at 230 V / 50 Hz
  • Power in/out connector: Neutrik powerCON in/out
  • DMX and RDM data in/out: Locking 5-pin XLR
• Approvals:
  • CE Compliant
  • cETLus Compliant
• Mechanical specification:
  • Height: 480 mm (19.9") – head in vertical position
  • Width: 317 mm (12.5")
  • Depth: 204 mm (8")
  • Weight: 11.8 kg (26 lbs)
  • Ingress protection rating: IP20
• Rigging:
  • Mounting points: 2 pairs of ¼-turn locks
  • 2 x Omega brackets with ¼-turn quick locks
  • Universal operating position
  • Pan and Tilt transport locks
