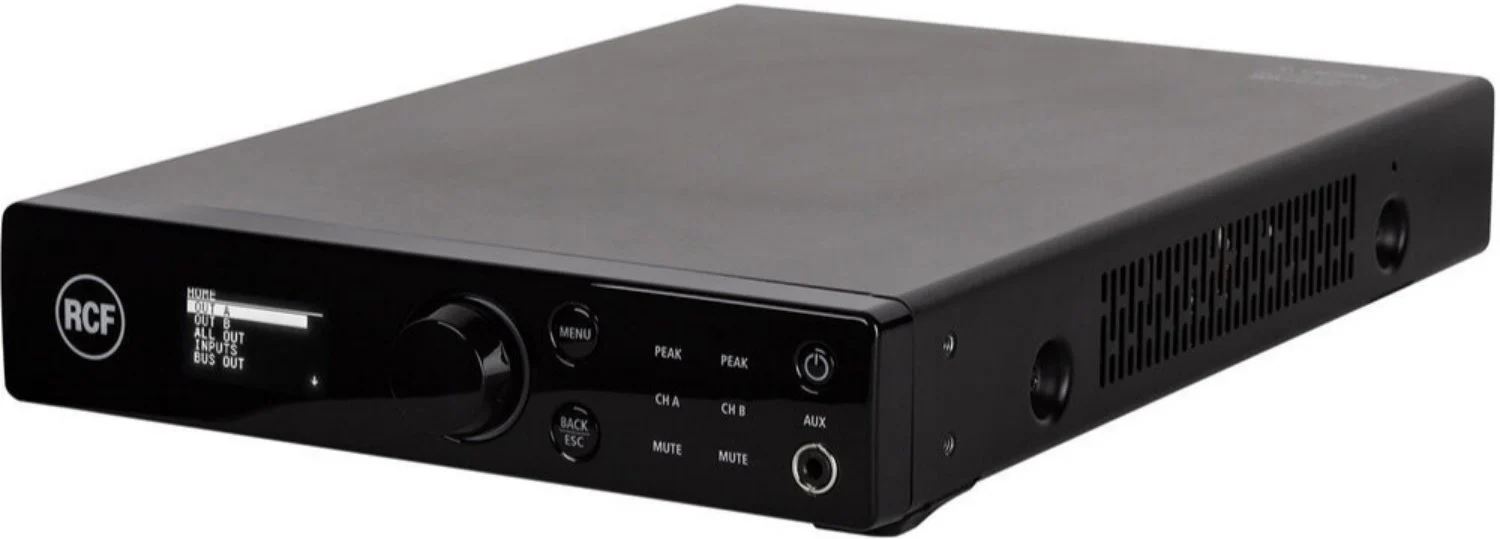

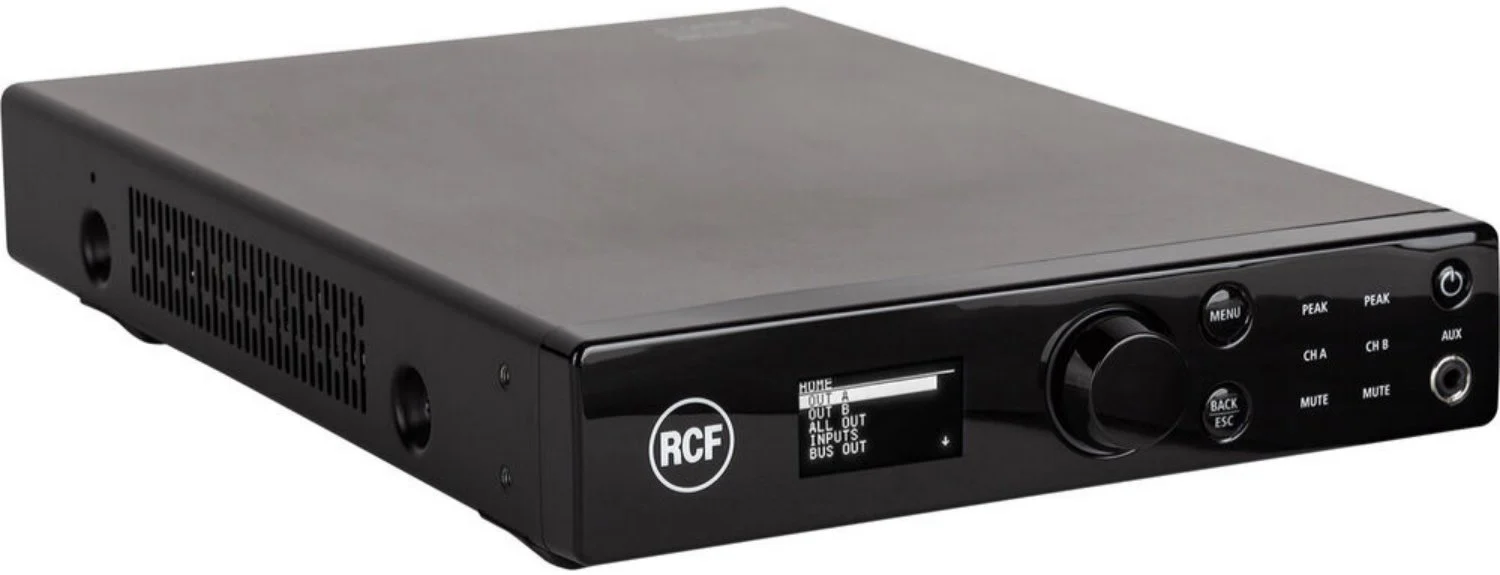

RCF DMA 162 2 Channel Digital Matrix Power Amplifier - 2x 160 Watt

The DMA 162 is a two-channel class-D matrix amplifiers equipped with a powerful DSP platform, allowing managing inputs and outputs in terms of routing and equalization (a complete set of processing functions is available, including PEQ, FIR filters, bass enhancement, limiters, compressors and environmental equalization); moreover, dedicated presets for RCF speakers have been implemented to optimize their acoustic performance. It can distribute 4 audio channels to DMA 162P units through an analogue audio BUS, combining a flexible and scalable multi-room architecture with an easy connection and installation. Its configuration is simple and user friendly and can be carried out through either its front panel controls (with OLED display) or RDNet. Thanks to its installation flexibility, accurate design, and robustness, it is ideal for a wide range of business music and installed sound applications.

Features:

• 2-channel Class-D power amplifier with 160 watts per channel
• Full onboard processing
• 20Hz – 20kHz frequency range
• Proprietary Bass enhancer algorithm
• RCF speaker presets
• FiRPHASE Linear phase filters
• Flexible and scalable multi-room architecture
• RDNet ready for networked management
• Desktop or rack installation

Specifications:

• Amplifier specifications:
  • Amplifier Class: D
  • Number of channels: 2
  • Power output per channel (@ 4 ohm): 160 W RMS
  • Power output (bridged @ 4 ohm): 320 W RMS
  • Power output (@ 100V): 320 W RMS
  • Frequency Response (-3dB): 20 Hz ÷ 20000 Hz
  • Signal/noise rate (”A” weighted) >93 dB
  • Distortion (THD+N) @ 1 kHz nominal
  • power: less than 0.01%
• Input section:
  • Total number of inputs: 5
  • Balanced: 2
  • Unbalanced: 3
  • Mono: 2
  • Stereo: 3
  • VOX: Yes
  • Line inputs: 3
  • Line connectors: JACK, Picoflex, RCA
  • Mic+Line inputs: 1
  • Mic+Line connectors: Euroblock
  • VOX: Yes
  • Paging inputs: 1
  • Paging connectors: RJ45
  • Paging command: Contact
  • General Purpose Inputs (GPI): 1

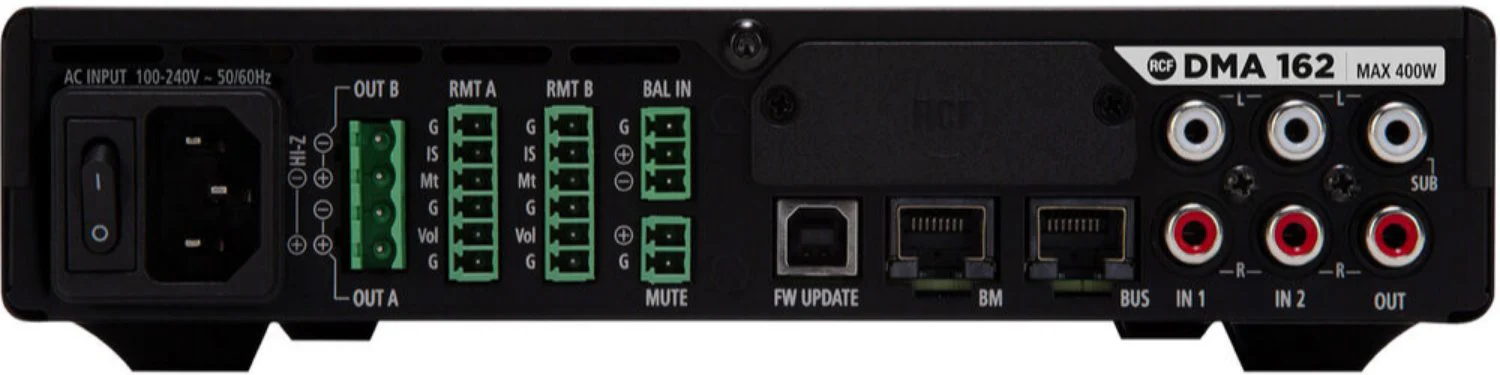

• Output section:
  • Signal output number: 1
  • Signal output connectors: RCA
  • Power output connectors: Euroblock
• Processing:
  • DSP: Yes
  • EQ Filters: Yes
  • FIR: Yes
  • Compressors: Yes
  • Tone controls: Yes
  • High-pass filter: 80 Hz ÷ 200 Hz
• Controls:
  • Configuration: Front panel, PC Software
  • Protocols for system integration: Proprietary
  • RDNet: Yes
• Protections:
  • Cooling: Forced
  • Short circuit: Yes
  • Thermal: Yes
  • DC: Yes
  • Fuses: Yes
  • VHF (Very High Frequencies): Yes
• Power requirement:
  • Operating voltage: 90-240 V~ 50/60Hz
  • Power consumption: 400 W
  • Standard compliance CE marking: Yes
  • Physical specifications Cabinet/Case Material: Metal
  • Color: Black
  • Rack mounting: 1/2 19", 1U , Optional rack mounting
  • accessory required
• Dimensions (HxWxD): 1.73" x 8.39" x 12.36" (44 x 213 x 314 m)
• Weight: 3.75 lbs (1.7 kg)
