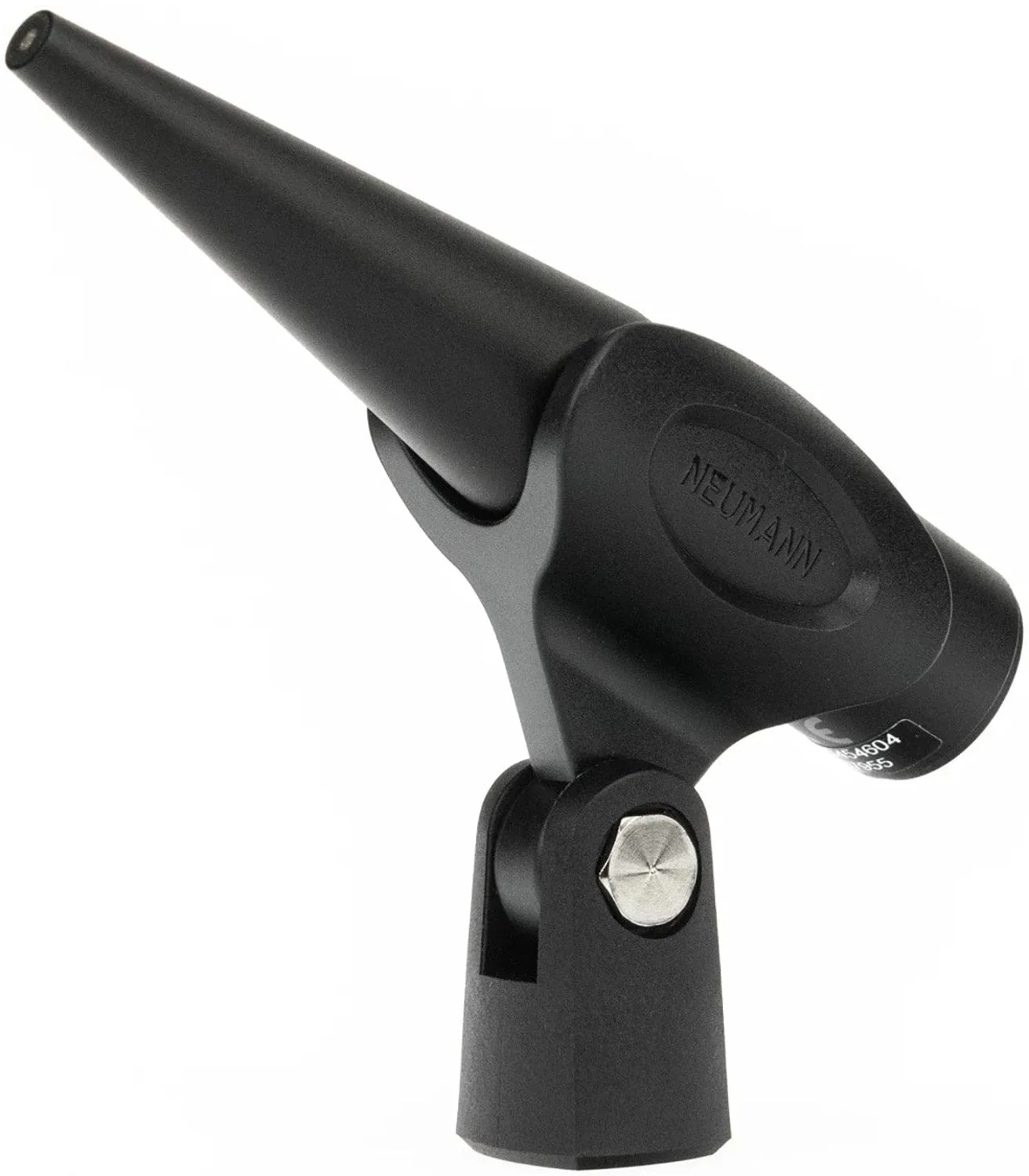

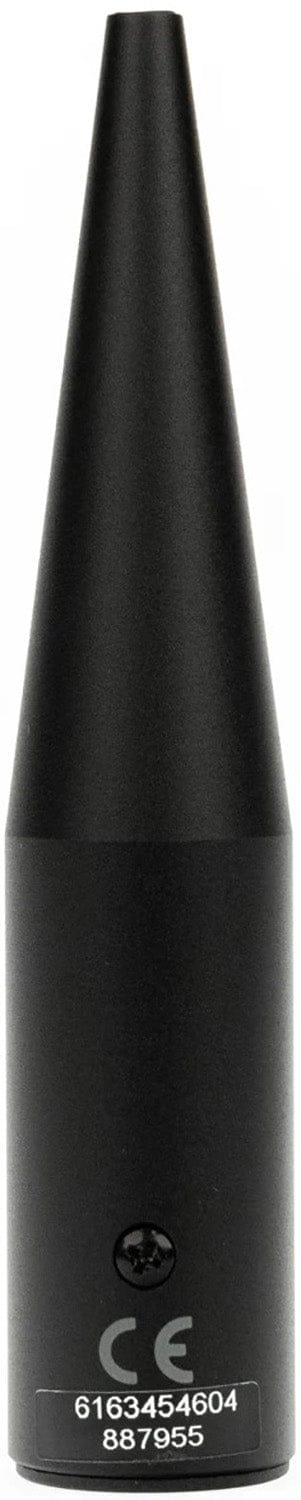

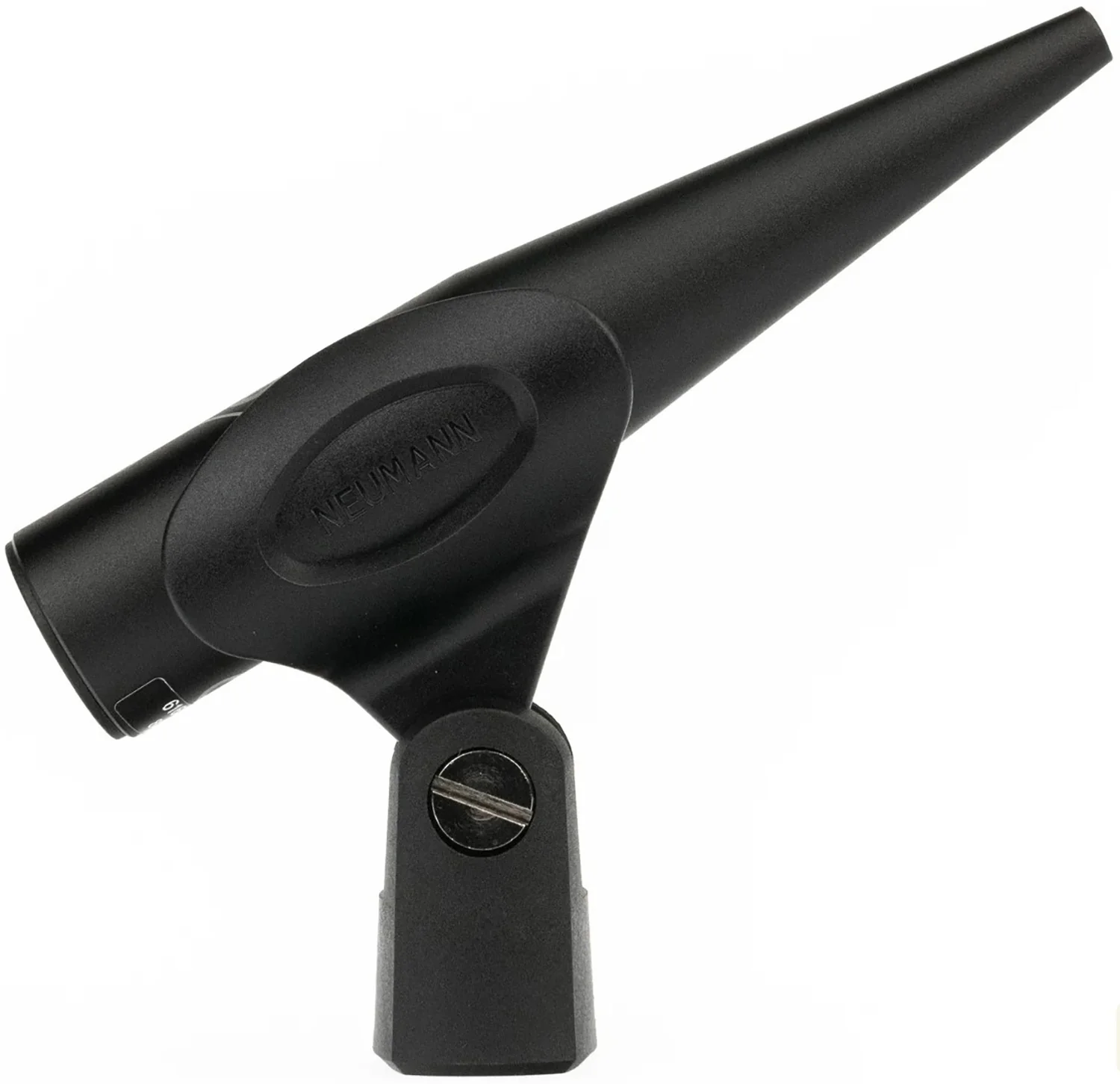

Neumann MA 1 MA 1 - Automatic Monitor Alignment

Neumann’s Automatic Monitor Alignment MA 1 ensures the best possible sound quality in any room – from home studios to professional control rooms. Using the individually calibrated measurement microphone your acoustic environment is analyzed in a guided process. Advanced algorithms, derived from decades of experience in aligning reference monitoring systems, guarantee optimally aligned frequency response, time of arrival and level for exact and reliable monitoring.

A unique benefit of the MA 1 Algorithm is precise and effective compensation of room modes. Using MA 1 results in increased clarity, consistency across monitors, dry bass, and time-correct, more accurate depiction of reverbs and acoustic spaces.

Features:

• 4" Woofer
• 1" Tweeter
• Bi-Amped: LF 120W, HF 70W
• MMD Waveguide
• DSP Engine
• Standard IP Network Input
• Bass Extension: 57 Hz (-3 dB)
• Neumann.Control App
• Mac, Windows, iOS, Android Compatible

Specifications:

• Acoustical operating principle: Pressure transducer
• Directional Pattern: Omnidirectional
• Frequency Range: 20 Hz - 20 kHz
• Sensitivity at 1 kHz into 1 kohm: 30 mV/Pa -30 dBV +/- 3 dB uncalibrated | 30 mV/Pa -30 dBV +/- 0,5 dB Calibrated (via software)
• Rated Impedance: 50 Ohms
• Rated load impedance: 1000 Ohms
• Equivalent noise level, CCIR: 39 dB
• Equivalent noise level, A-weighted: 27 dB-A
• Maximum SPL for THD 0.5%: 132 dB
• Signal-to-noise ratio, CCIR (re. 94 dB SPL): 55 dB
• Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 67 dB
• Maximum output voltage: 10 dBu
• Supply voltage (P48, IEC 61938): 48 V ± 4 V
• Current consumption (P48, IEC 61938): 3 mA

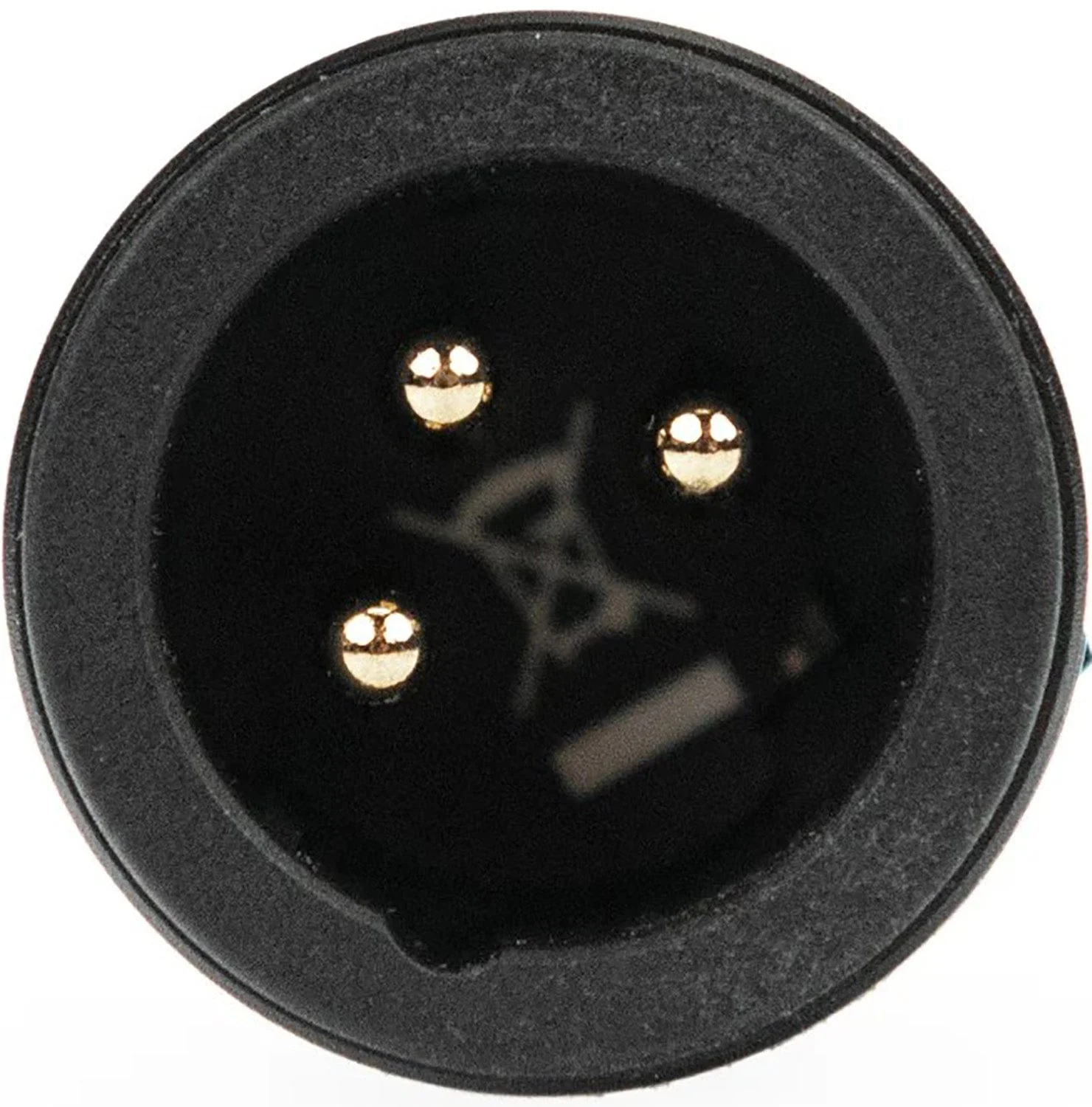

• Matching connector: XLR3F
• Weight: 37 g
• Diameter: 23 mm
• Length: 117 mm
• Operating conditions: 0 °C - +70 °C (32 °F - 158 °F); max. 90 % at +20 °C
• Transport/storage conditions: −20 °C - +70 °C (−4 °F - 158 °F); max. 90 % at +20 °C
