L-Acoustics X12 2-way Passive, 12"

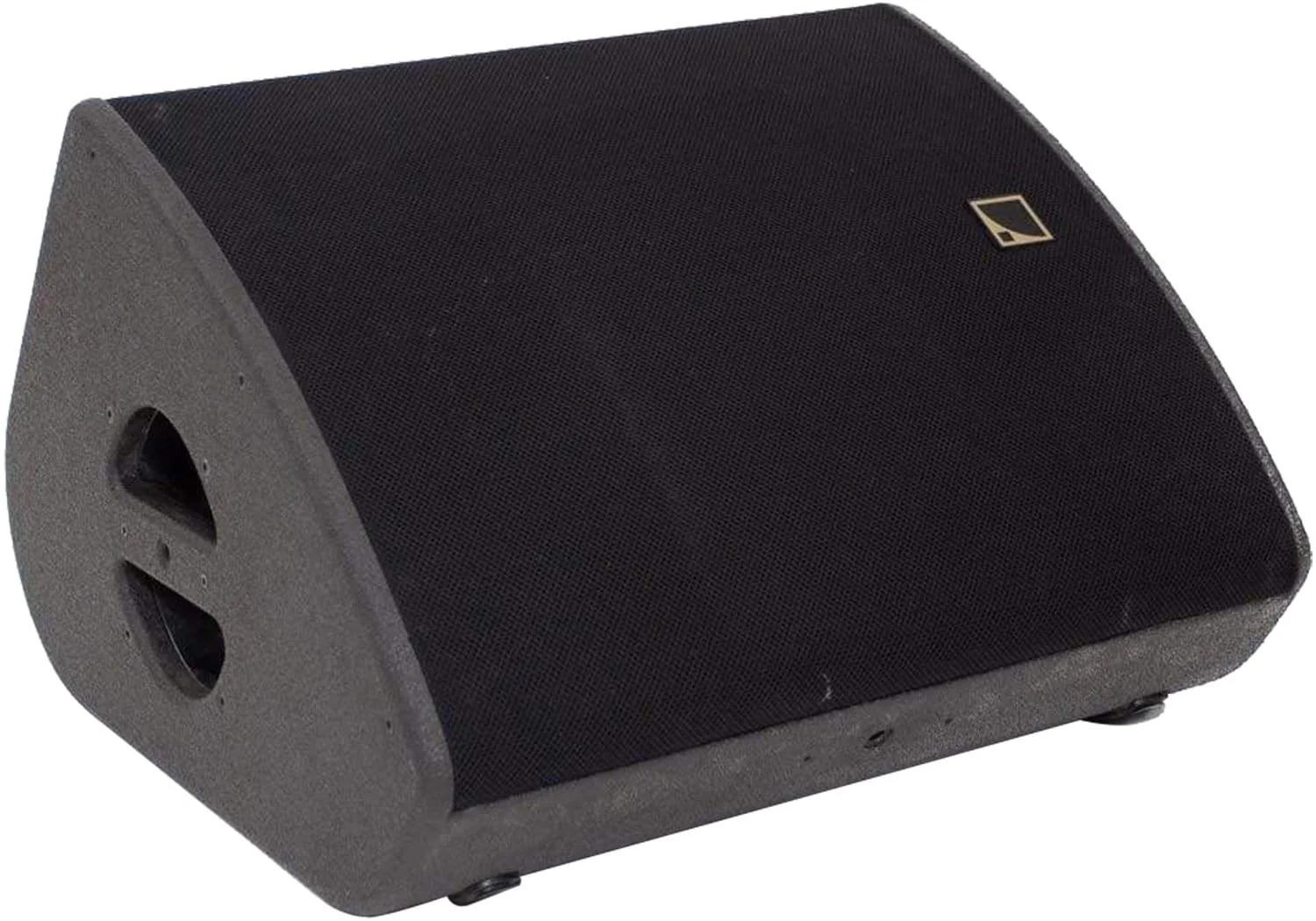

The X12 is a multipurpose coaxial system perfectly suited to all short throw sound reinforcement applications. The enclosure features a 3’’ diaphragm compression driver coaxially loaded by a 12’’ low frequency transducer in a bass-reflex cabinet. The L-Vents laminar vented ports reduce turbulence and port noise at high levels to increase LF efficiency. The X12 operates from 59 Hz to 20 kHz. The coaxial transducer arrangement and its ellipsoid acoustic design produce a 90° x 60° directivity pattern with a smooth tonal response free of secondary lobes over the entire frequency range. The internal passive crossover network uses custom filters. The L-Acoustics amplified controllers L-Drive parameters ensure the linearization and protection of the transducers.

Specifications:

• Description: Passive 2-way coaxial enclosure, controlled and amplified by LA4X / LA8
• Usable bandwidth (-10 dB): 59 Hz - 20 kHz (X12 preset)
• Maximum SPL: 136 dB (X12 preset)
• Nominal directivity:
  • Vertical: 90°
  • Horizontal: 60°
• Monitoring angle:
  • 35° without risers
  • 55° with risers
• Transducers:
  • LF: 1 × 12" neodymium, bass-reflex, laminar vents
  • HF: 1 × 3" neodymium compression driver, ellipsoid waveguide
• Nominal impedance: 8 Ω

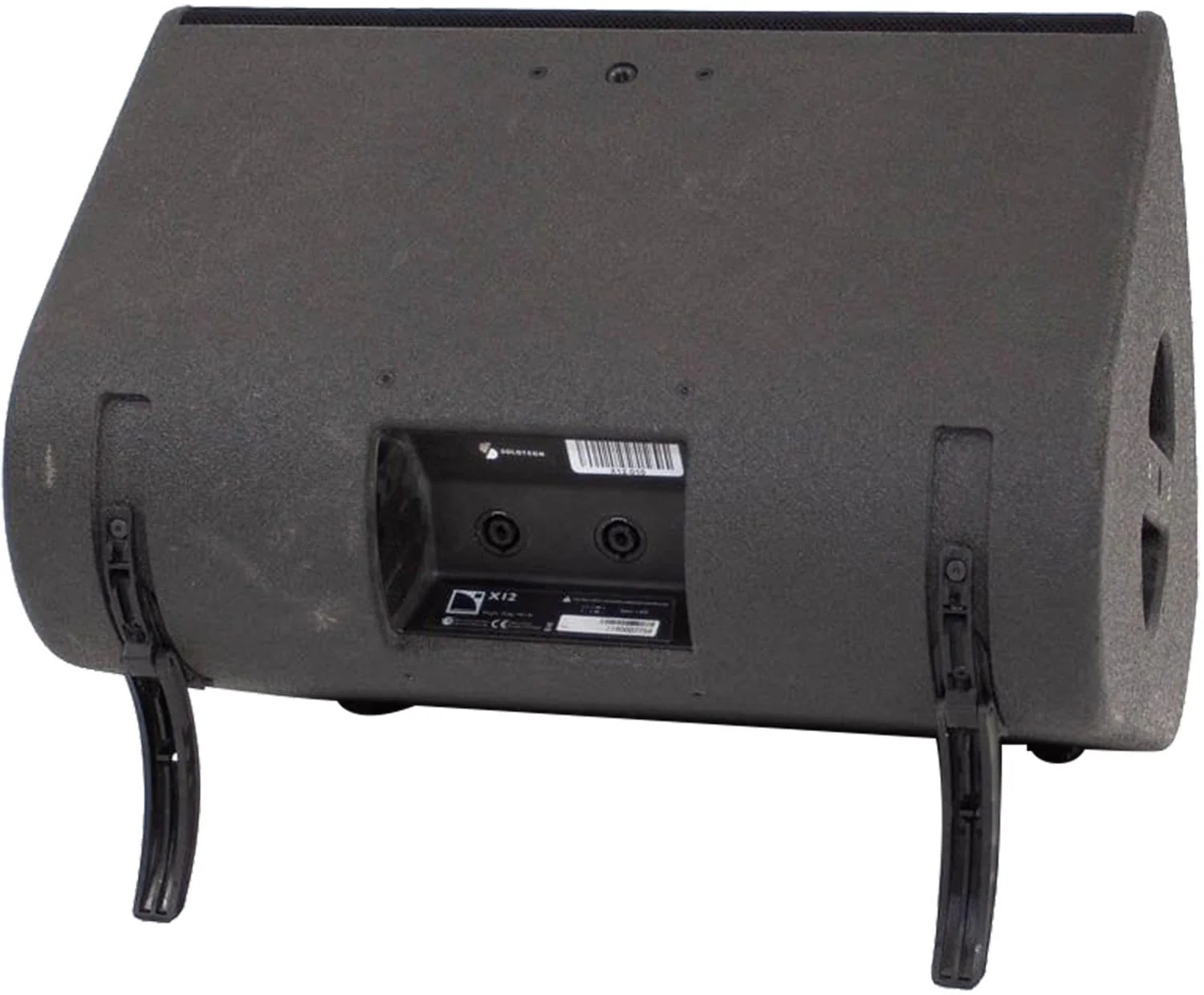

• Connectors:
  • IN: SpeakON®
  • LINK: SpeakON®
• Rigging and handling:
  • 2 × handles
  • DIN580-compatible M8 threaded insert
  • 4 × M10 threaded inserts
  • 2 × 35 mm pole sockets
• Weight (net): 20 kg / 44.1 lb
• Cabinet: First grade Baltic birch and beech plywood
• Finish:
  • Dark grey brown Pantone® 426C
  • Pure white RAL® 9010
  • Custom RAL® code on special order
• IP: IP43

Controllers:

• L-Acoustics LA7.16i Amplified Controller
• L-Acoustics LA12X Amplified Controller
• L-Acoustics LA4X Amplified Controller
