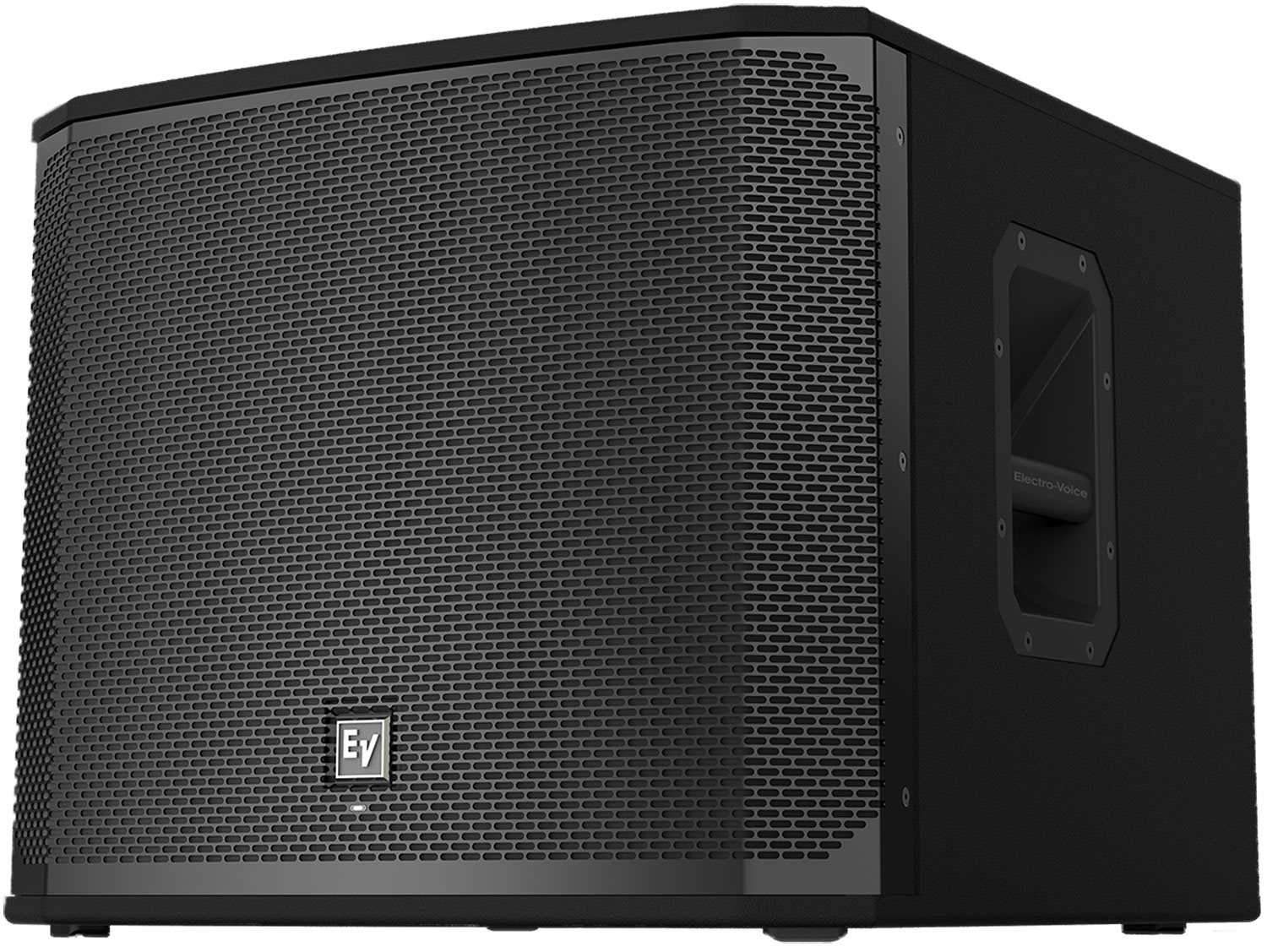

Electro-Voice EKX-15S 15" Passive Subwoofer

Features:

• 1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing high sensitivity transducers designed and engineered by EV.
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
• Large slot ports for low distortion and excellent bass extension.
• Metal grille reinforcement bar (two bars on the EKX-18S).

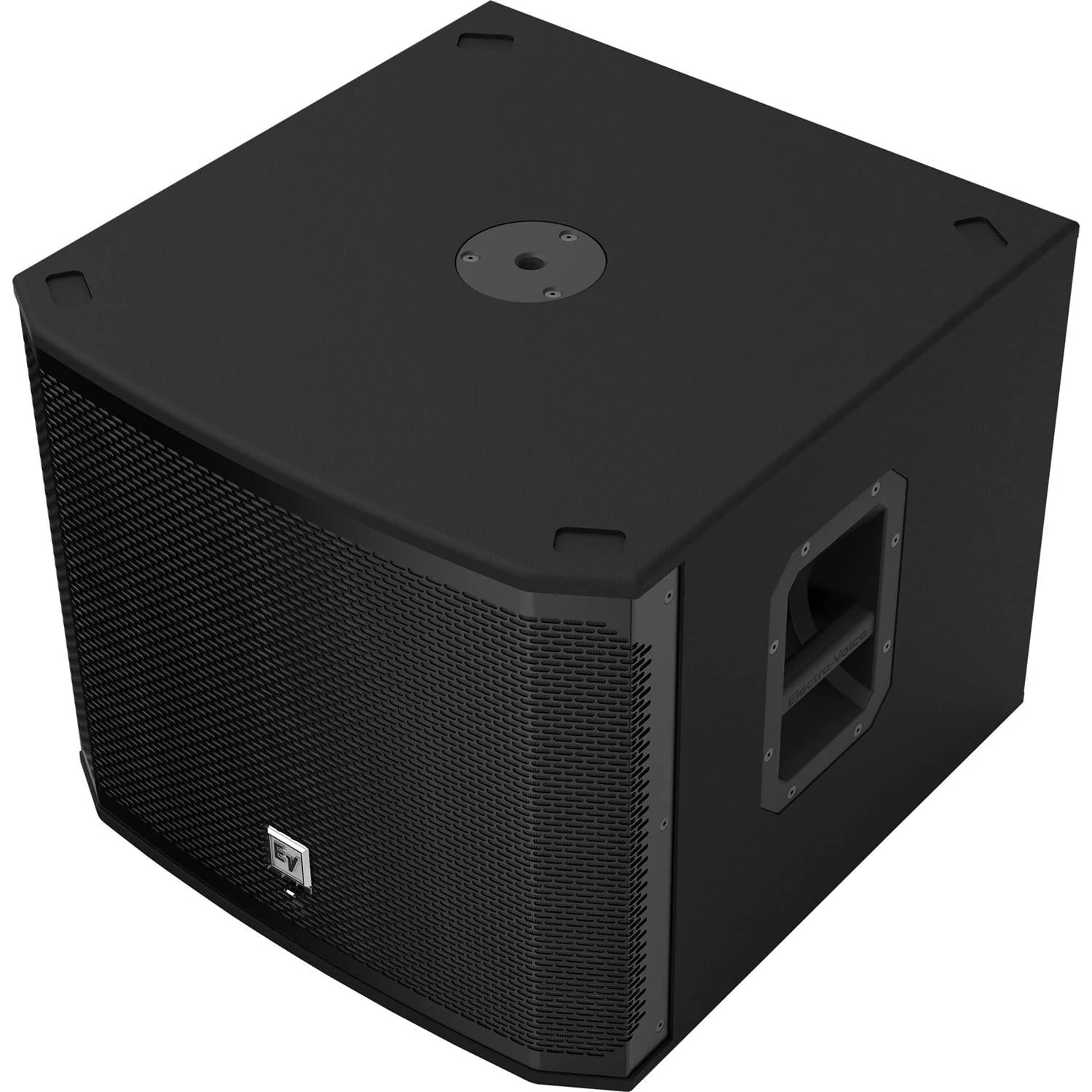

• M20 threaded pole mount plate.

Specifications:

• Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
• Connector Type: Dual NL4
• Coverage (Nominal -6 dB) H: 90°
• Coverage (Nominal -6 dB) V: 60°
• Enclosure Material: 15 mm, plywood with EVCoat
• Frequency Response (-10 dB): 40 Hz - 300 Hz Half Space Measurement
• Frequency Response (-3 dB): 60 Hz - 100 Hz Half Space Measurement
• Grill: 18 AWG steel with powdercoat
• LF Transducer: EVS-15C 381 mm (15 in)
• Maximum SPL: 133 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
• Minimum Impedance: 7.5 Ohm
• Nominal Impedance: 8 Ohm
• Power Handling (Continuous/Peak): 400 W/1600 W
• Recommended High-Pass Frequency: 35 Hz
• Height: 11RU 455 mm (17.91")
• Width: 530 mm (20.87")
• Depth: 551 mm (21.69")
• Weight: 24.9 kg (54.9 lbs.)
