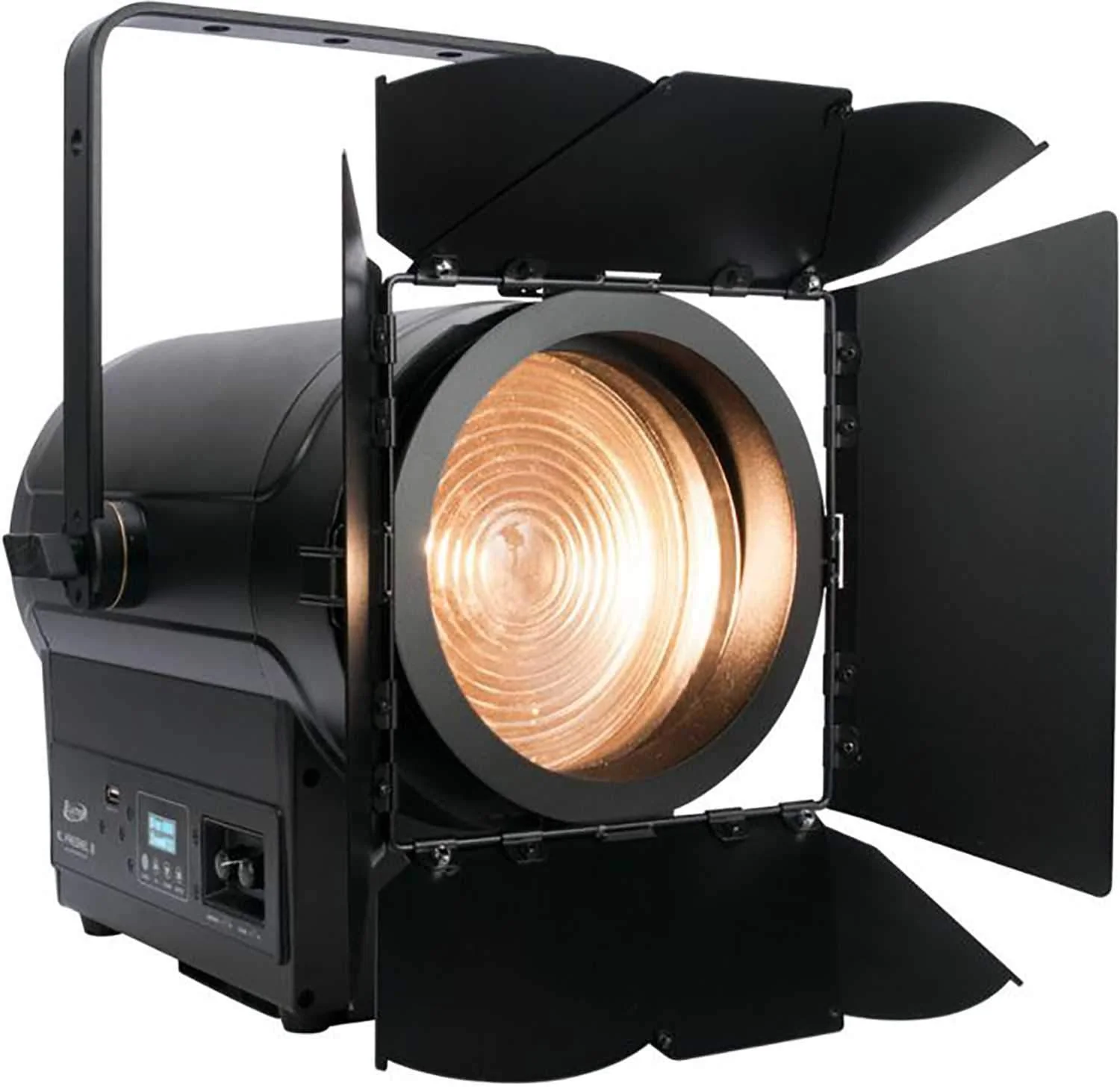

Elation KL Fresnel 8 350W Warm White LED 8" Fresnel with Motorized Zoom

KL Fresnel 8™ is a 350W 3,000K >96CRI Warm White LED fresnel, producing over 14,000 total lumen output, on par with compatible tungsten halogen models. Features include manual and DMX control, 11° to 57° wide motorized zoom, manual and DMX controlled dimmer, shutter, and zoom, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and Film, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and powerCON True1 in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included), and a 3 clamp position adjustable mounting yoke.

Features:

• 350W 3,000K >96CRI Warm White LED Engine
• 14,000+ Total Lumen Output
• Output On Par with Tungsten Halogen Models
• 11° to 57° Wide Motorized Zoom
• Manual and DMX Controlled Dimmer, Shutter, and Zoom
• Dimmer and Zoom Rotary Dials
• Smooth 16-bit Selectable Dimming Modes and Curves
• LED Refresh Rate Adjustment
• Flicker Free Operation for TV and Film
• RDM (Remote Device Management)
• Gel Frame and Rotating Barn Doors (included)
• 3 Clamp Position Adjustable Mounting Yoke

Specifications:

Source

• 350W >96CRI 3,000K Warm White LED
• 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

Photometric Data

• 14,000+ Total Lumen Output
• 43,673 LUX 4,057 FC @6.6’ (2m) (Min Zoom / Full ON)
• 4,169 LUX 387 FC @6.6’ (2m) (Max Zoom / Full ON)

Effects

• 11° - 57° Wide Motorized Zoom
• Electronic Dimmer and Strobe
• Variable 16-bit Dimming Modes and Curves

Color

• Warm White 3,000K

Control / Connections

• Manual and DMX Controlled Dimmer, Shutter and Zoom
• Dimmer and Zoom Rotary Dials
• Dimmer and Zoom Rotary Dials
• (5) DMX Channel Modes (2 / 3 / 3 / 6 / 7)

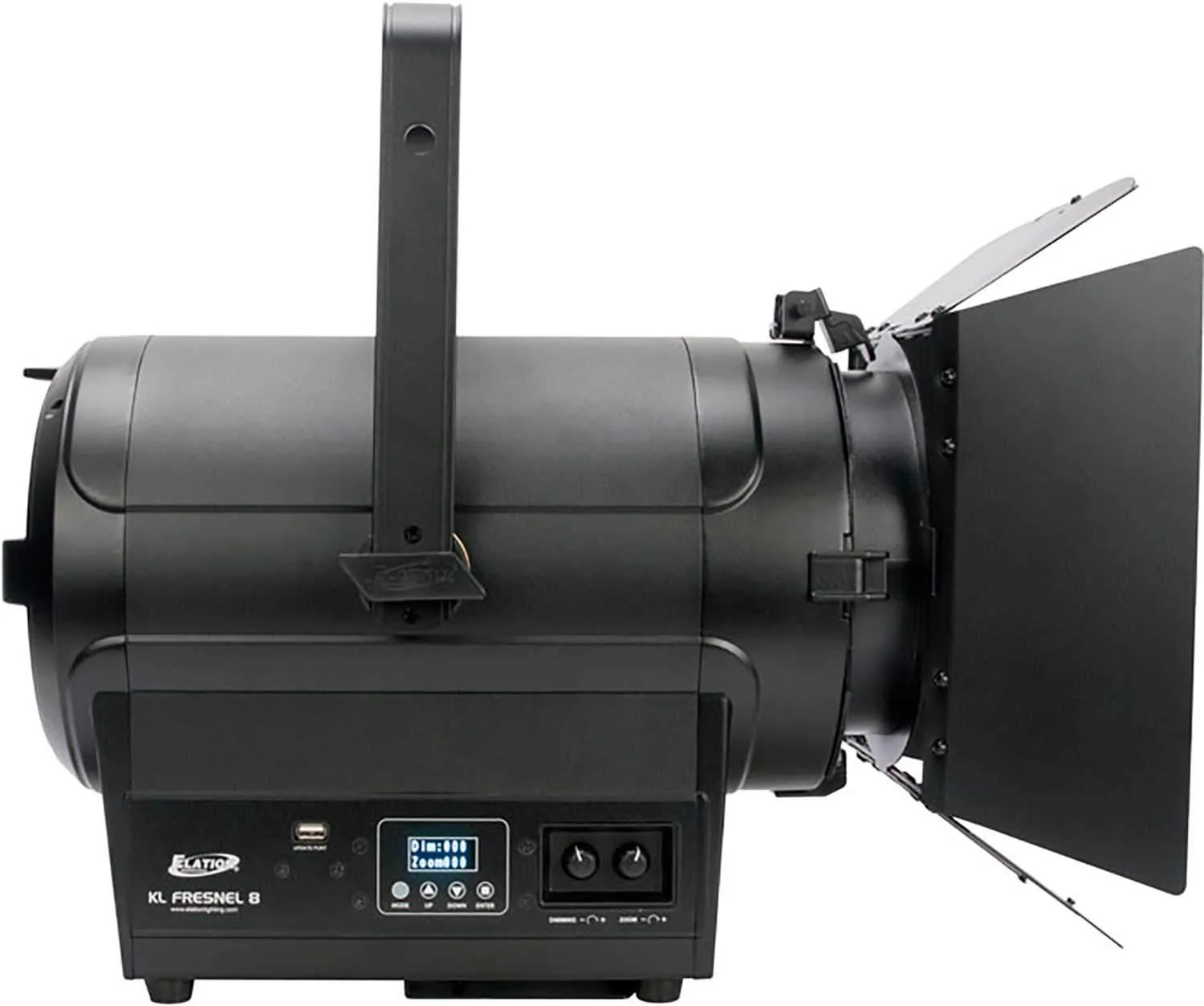

• 4 Button Control Panel LCD Menu Display
• RDM (Remote Device Management)

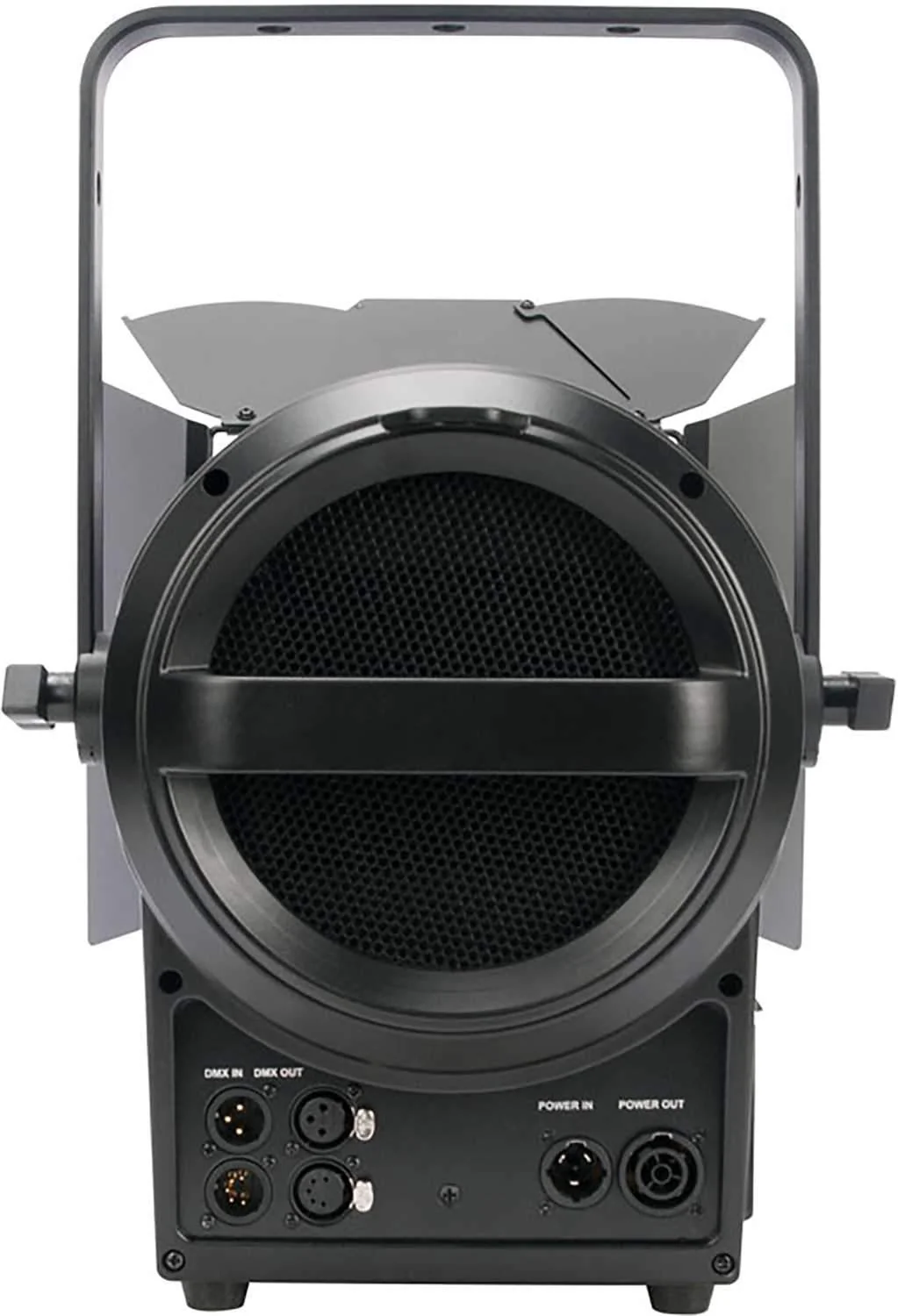

• 3/5pin DMX and powerCON True1 In/Out
• With Wired Digital Communication Network

Size / Weight

• Length: 23.95" (608.4mm)
• Width: 12.89" (327.5mm)
• Vertical Height: 17.95" (456mm)
• Weight: 28.0 lbs. (12.7kg)

Electrical / Thermal

• AC 100-240V - 50/60Hz
• 430W Max Power Consumption
• Multiple Unit Power Linking
• 5°F to 113°F (-15°C to 45°C)

Included Items

• Gel Frame and Rotating Barn Doors
• powerCON True1 Power Cable
• Barn Doors and Fixture Safety Cables

Approvals / Rating

• CE | cETLus | IP30
