DataVideo SHOWCAST-100 4K All-In-One Single Operator Video Switcher

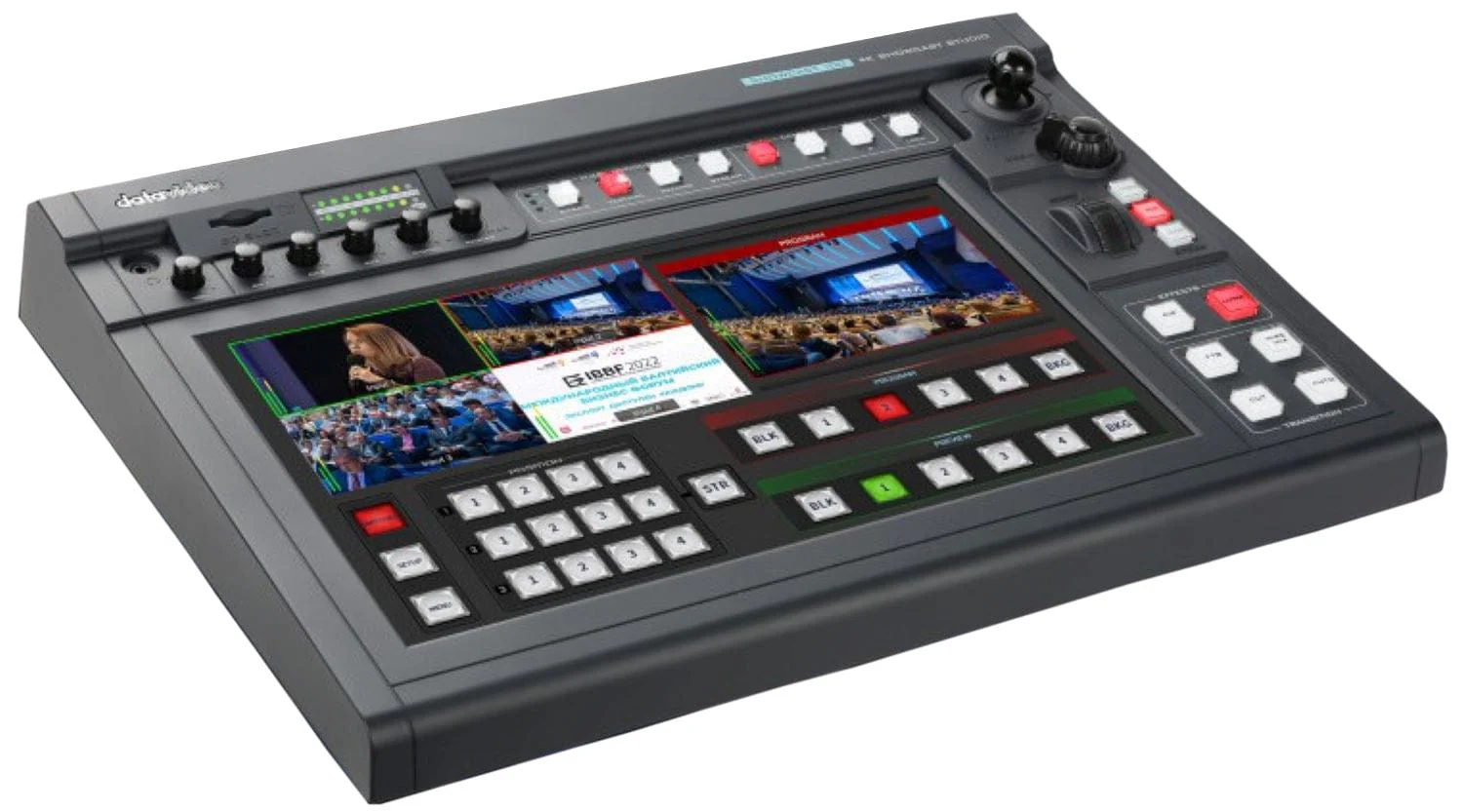

The SHOWCAST 100 is an all in one switcher featuring Video Switching, Streaming, Recording, Camera Control and Audio Mixing in one box. It is a UHD 4K 4-input switcher with an integrated 14-inch touch panel. The built-in network streaming encoder allows you to stream videos to all major streaming platforms live. Moreover, the video stream can be recorded to the SD card for backup purpose. The SHOWCAST 100 offers remote control of multiple cameras settings such as pan, tilt, zoom, iris, focus, gain and white balance. It connects up to 3 Datavideo cameras over a long distance via Ethernet cables.

The switcher is equipped with luma key for graphic overlays, split screen for podcast interviews, and PiP for PowerPoint presentations. It is also equipped with a built-in audio mixer allowing users to directly connect microphones and other audio sources.

Features:

• 4K 60/p live video production ideal for IMAG applications
• Integrated PTZ camera control with presets, focus, white balance, & iris
• H.264 dual streaming & recording encoder
• Audio mixer for mixing embedded and external audio sources
• Tactile buttons combined with a 14” intuitive touch screen interface with transition controller

Specifications:

• Model Number: SHOWCAST 100
• Video Standard: 4K & HD
• Video Format:
  • Input:
    • 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 60/59.94/50, 720p: 60/59.94/50
    • VGA, XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x1200), WUXGA (1920 x 1200)
  • Output:
    • 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080p: 60/59.94/50/30/29.97/25/24/23.98
    • 1080i: 60/59.94/50, 720p: 60/59.94/50
• Video Processing:
  • 4K60
  • YUV4:4:4 8bit, YUV 4:2:2 8/10bit, YUV 4:2:0 8bit, RGB 4:4:4 8bit
  • 4K30
  • YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, YUV 4:2:0 8bit, RGB 4:4:4 8/10/12bit
  • HD
  • YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, RGB 4:4:4 8/10/12bit
• Input Routable / Crosspoint: N/A

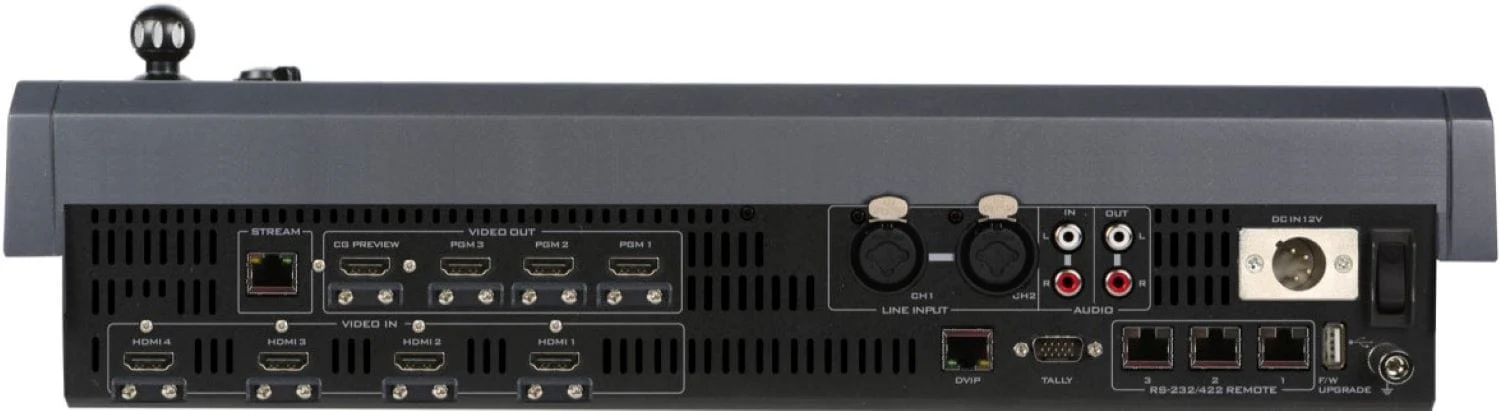

• Video Input: 4 x HDMI 2.0
• Mix HD & SD Source: ----
• Computer Graphic Interface: 4 via HDMI
• Video Output:
  • 3 x HDMI 2.0 for PGM
  • 1 x HDMI for CG Preview
• Down-converted Output: Yes
• Built-in Multi-view Monitoring Out: On 14" Touch Panel
• Analogue Audio Input:
  • 2 x 3 Pin XLR / 1/4” (6.3mm) Combo Socket
  • 1 x Stereo RCA set (L/R)
  • Audio Input Switch: Stereo / Mono
• Analogue Audio Output:
  • 1 x Stereo RCA set (L/R)
  • 1 x Stereo headphone (Mini Jack with volume control)
• Digital Embedded Audio Support: Input 2 channels, Output 2 channels
• Audio Delay Calibration: Up to 200ms
• A+V Switching: Yes
• Chromakey: ----
• Title Creator: Web GUI
• USK: Lumakey
• DSK: ----
• Picture in Picture: 1
• Logo Insertion: ----
• Still Store: ----
• Effects: Seamless Cut, WIPE, Mix
• Transition Preview: ----
• Sync / Reference In/Out: Built-in Genlock (internal)
• Tally Output: D-Sub -15 Male connector
• PC Remote Control:
  • Web browser UI for configuration and control
  • Socket commands
• Camera Control: DVIP/ RS-422/ RS-232
• Built-in Audio Mixer: Yes
• Storage:
  • 1 x SD Card Slot
  • Supports SD, SDHC and SDXC card (UHS-I) (Class 10 above)
• Recording File System: FAT, NTFS, exFAT
• Recording File Format: MP4
• Video Encode:
  • H.264 / AVC, Main/ High Profile
  • Record Only: Up to 16Mbps (1080p 50/60)
  • Stream Only: Up to 10Mbps (1080p 50/60)
  • Rec and Stream: Up to 10Mbps (1080p 25/30)
  • Rec and Stream: Up to 36Mbps (1080p50/60), Dual Stream
• Audio Encode:
  • AAC-LC
  • Configurable bit rate range from 32Kbps to 384Kbps
  • Sample rate: 48KHz, 16bit
• Streaming Protocol:
  • TS over TCP/UDP (unicast & multicast)
  • RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
  • RTMP (Publish)
• Firmware Update: Ethernet, USB
• Special Features: 14.0" Touchscreen Display
• Chassis: Unibody
• Dimension (LxWxH): 437.6 x 330.5 x 96.5mm
• Weight: 5.4 Kg
• Power: DC 12V 82W
• Operating Temp. Range: 0~40 °C
