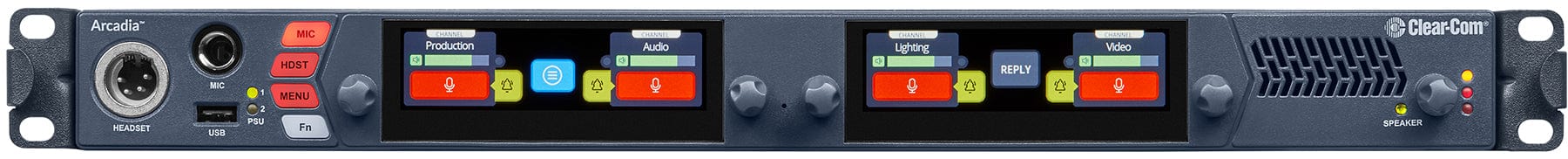

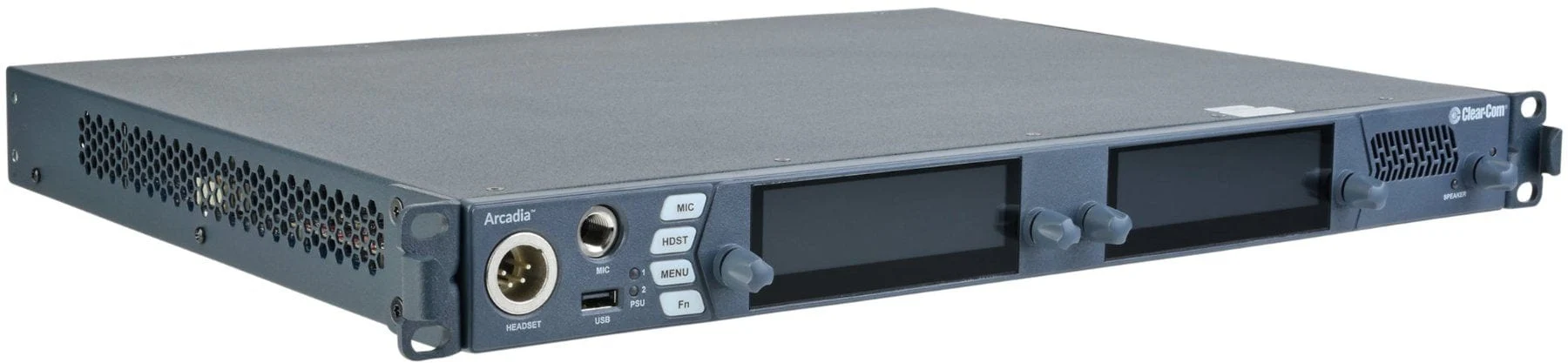

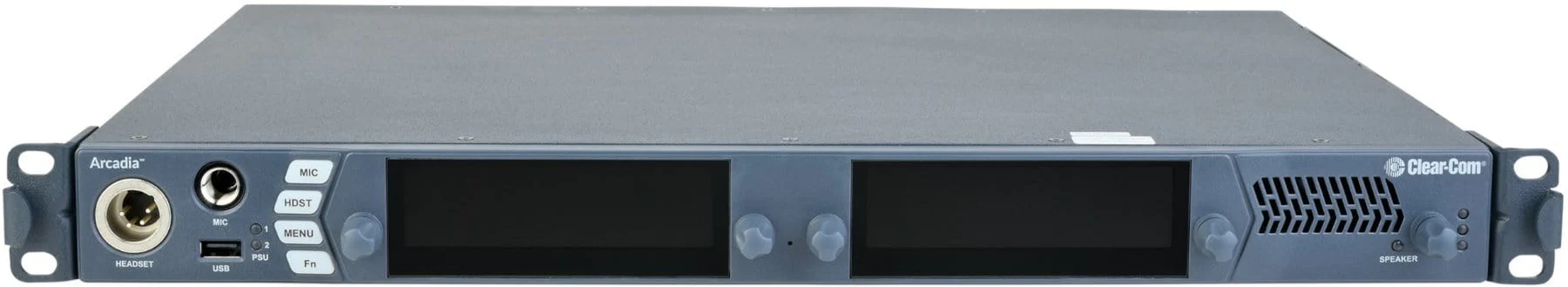

Clear-Com Arcadia Central Station 16 Licensed Ports 1RU with HelixNet 4-Wire / 2-Wire with Dante

The Arcadia Central Station is an IP-based standalone 1RU device supporting wired and wireless endpoints with up to 96 total ports of connectivity, 64 of which are available for Dante/AES67. Flexible licensing of features, including ports, allows Arcadia to expand over time as needed, making it a future-proof investment.

Features:

• Supports up to 32 beltpacks (FSII and/or FSE)
• 16 IP transceivers (FSII 1.9 or FSE 5.0GHz) and up to 10 E1 transceivers (1.9 or 2.4GHz)
• Supports up to 100 channels
• Up to 96 ports of connectivity
• High-quality 12kHz audio to FS Edge beltpacks
• 2 large full-color touch screen TFT displays
• 4 rotary encoders for gain and menu operation
• Functions as PTP Leader Clock

Specifications:

• Beltpacks per Station: 32 BPs (FSII or FSE)
• Transceivers/Antennas Supported by Station: 16 x FSII IP TCVRs (1.9 or FSE 5.0GHz) and 10 x E1 TCVRs (1.9 or 2.4GHz)
• Gooseneck Microphone Input: Dynamic/Electret - Selectable
• Frequency Response: Gooseneck Mic - Partyline: 200Hz - 12kHz ±3dBu
• Max Input Level: -10dBu
• Speaker Type: 1.6 x 2.8 in oval
• Max Output Level before 1% Distortion: 18dBu ± 2dB
• 4-wire I/O: Output Impedance >10kΩ
• 2-wire Operating Levels: -18dBu nominal (Clear-Com Mode), -12dBu nominal (RTS Mode)
• Environmental: Operating: 32° to 113°F, Storage: 86° to 158°F
