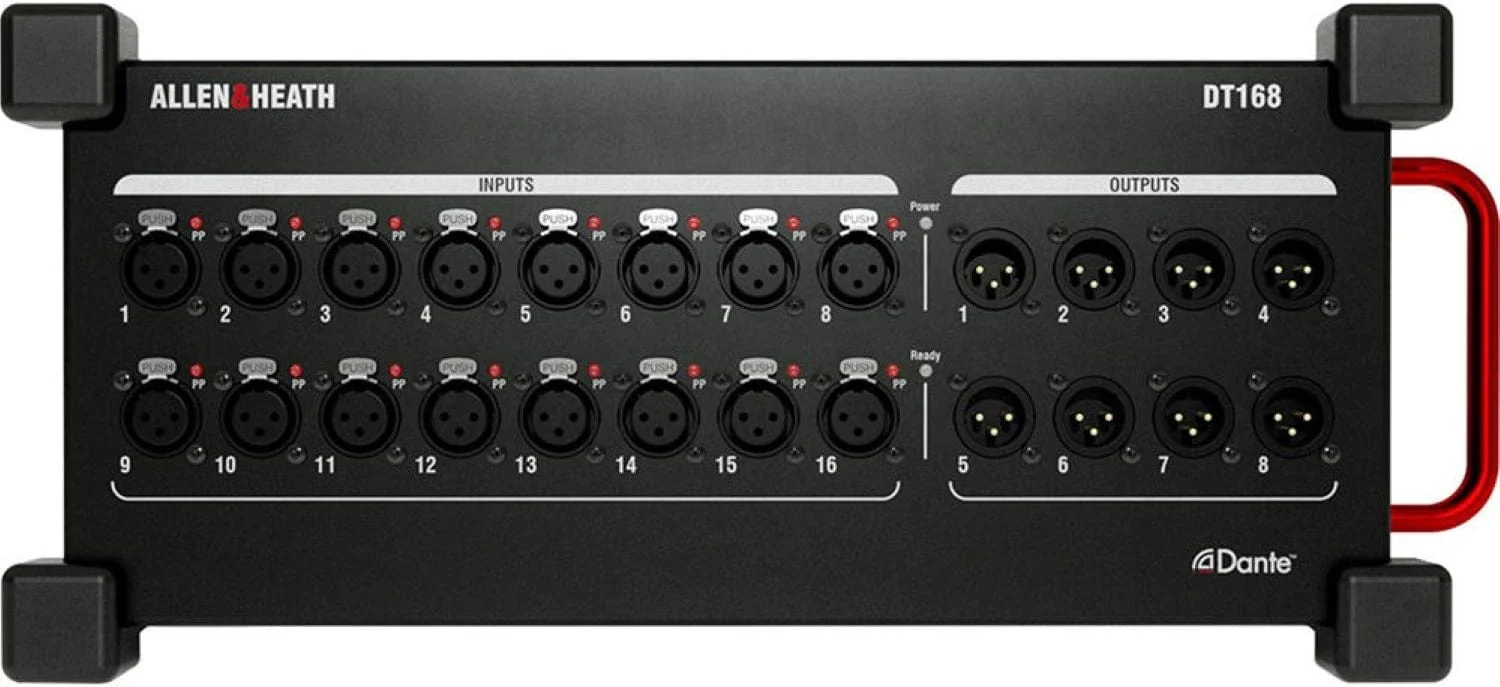

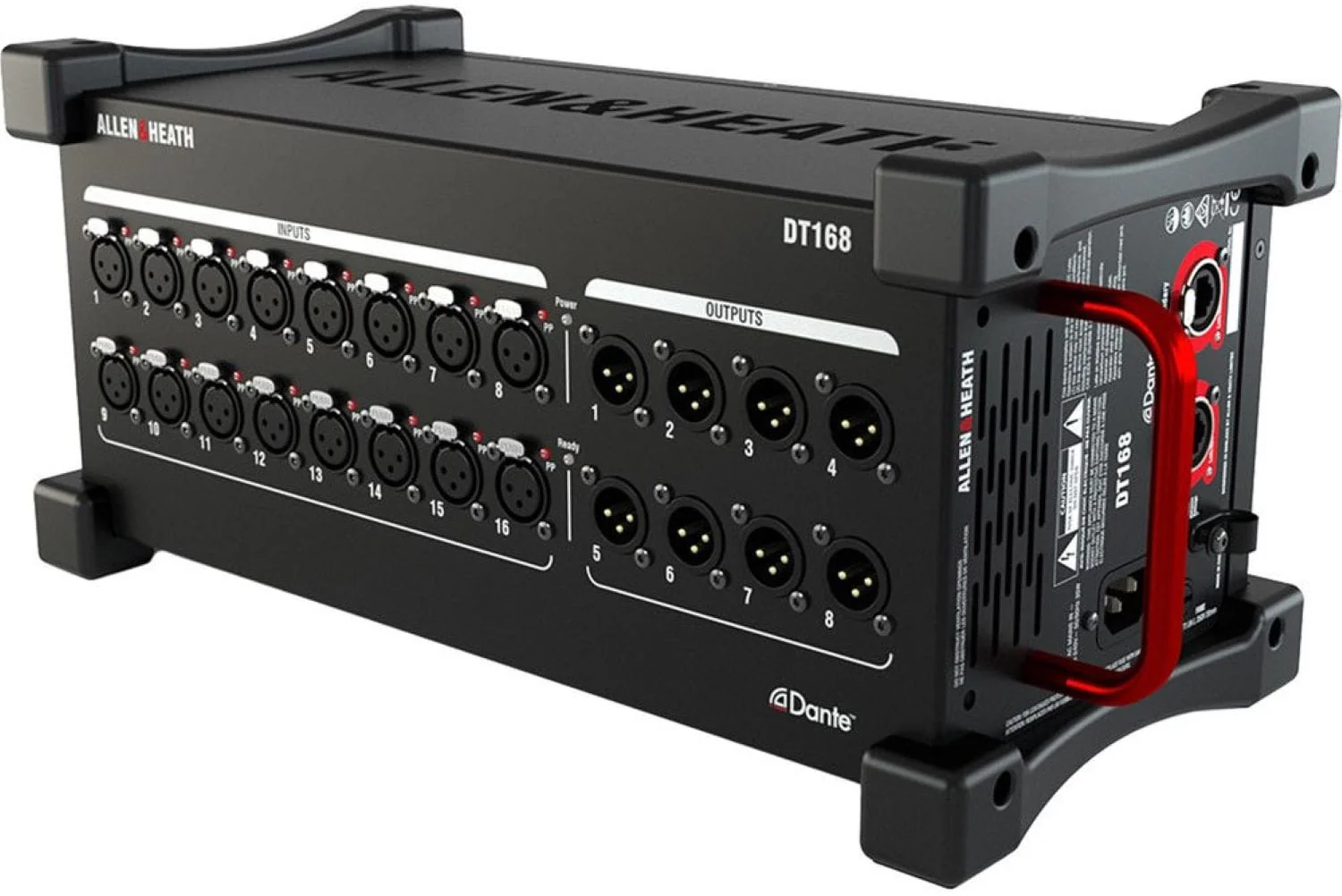

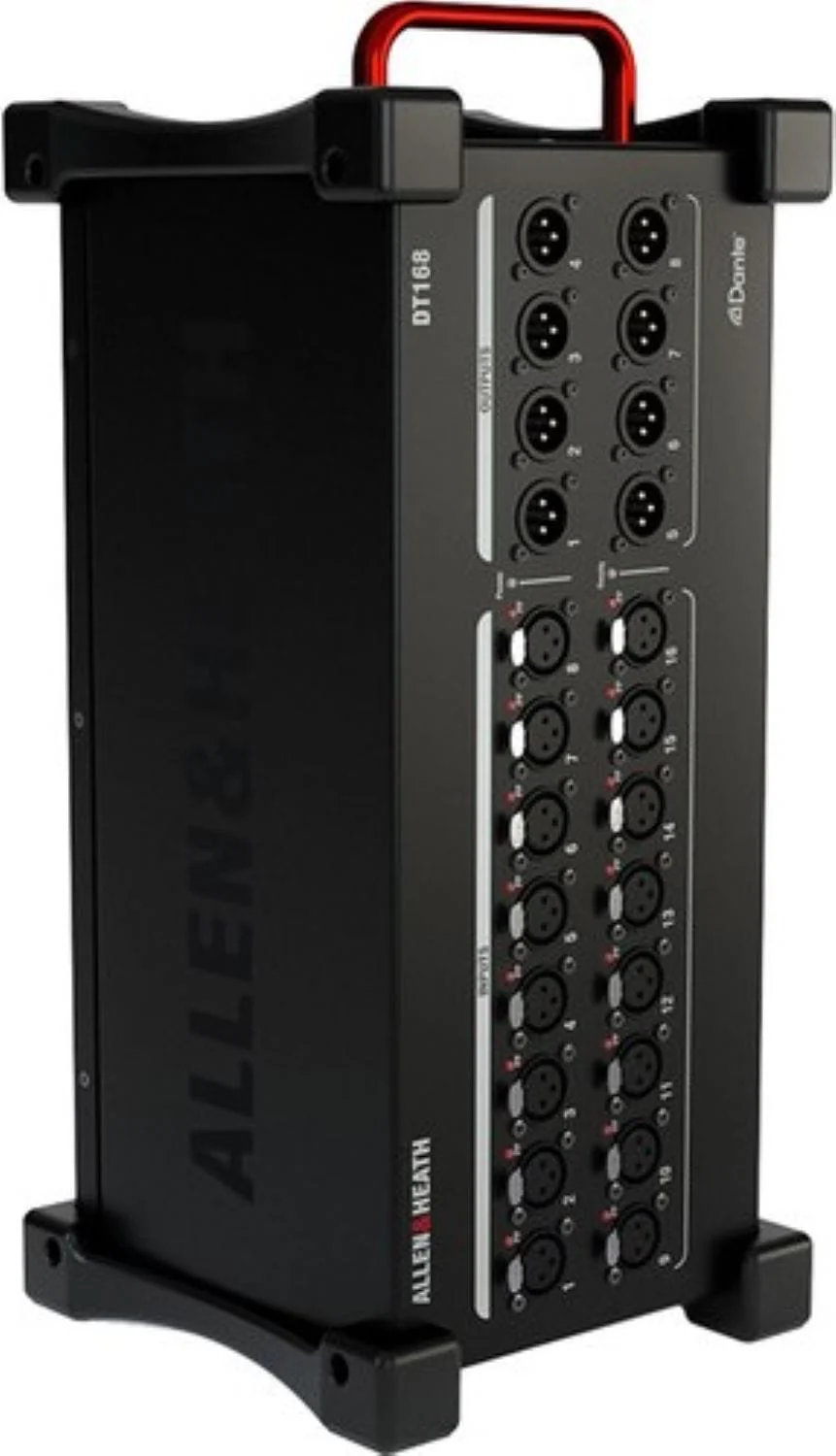

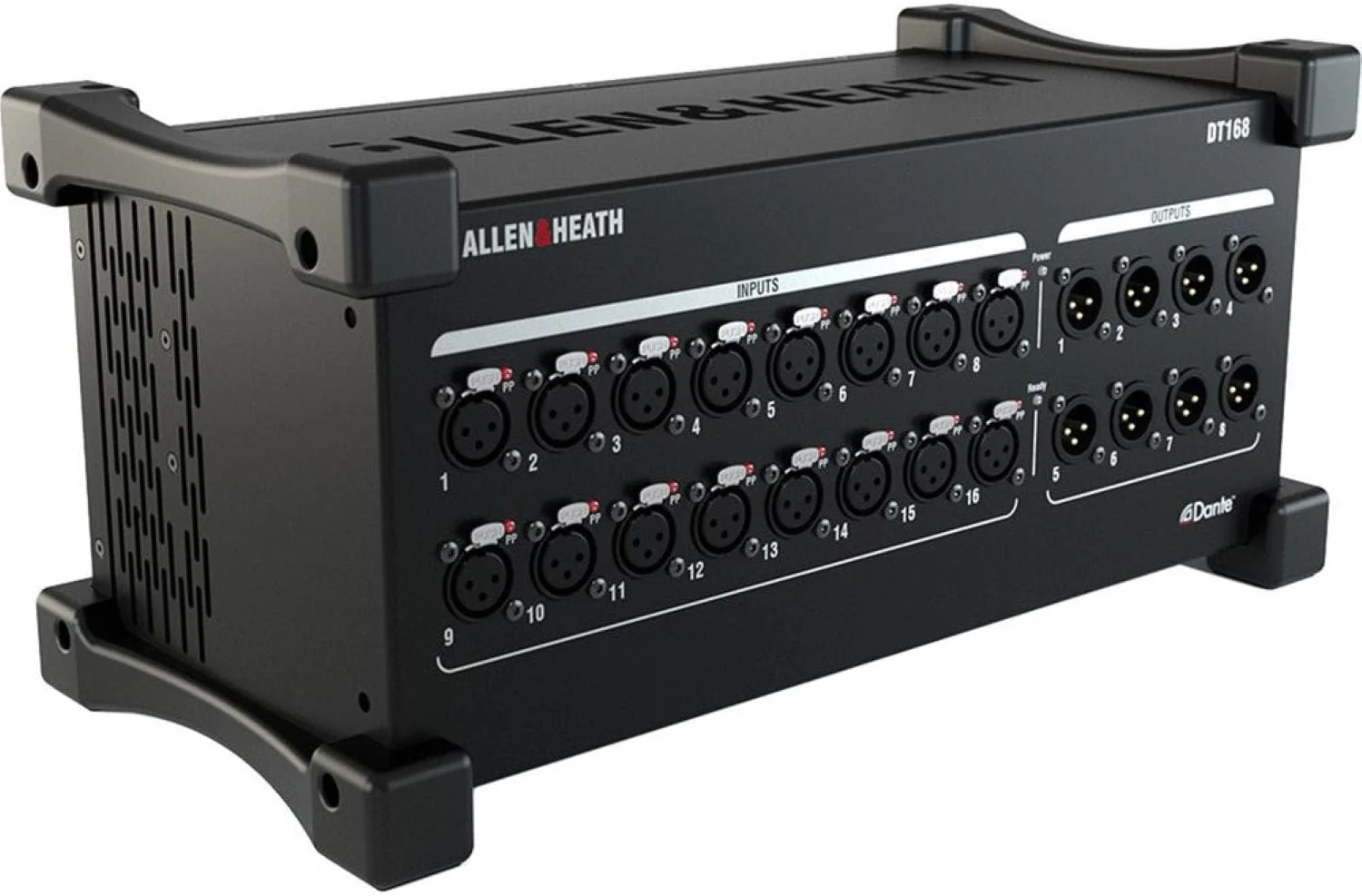

Allen & Heath DT168 16in / 8out Dante Interface

The DT168 is a rugged, 96kHz portable expander for adding remote I/O to a Dante equipped dLive, Avantis, SQ, or AHM system.

Features:

• Dante audio expander (96kHz / 48kHz)
• Portable stagebox design
• 16 mic preamps on XLR with Phantom Power status LEDs
• 8 XLR Line Outs

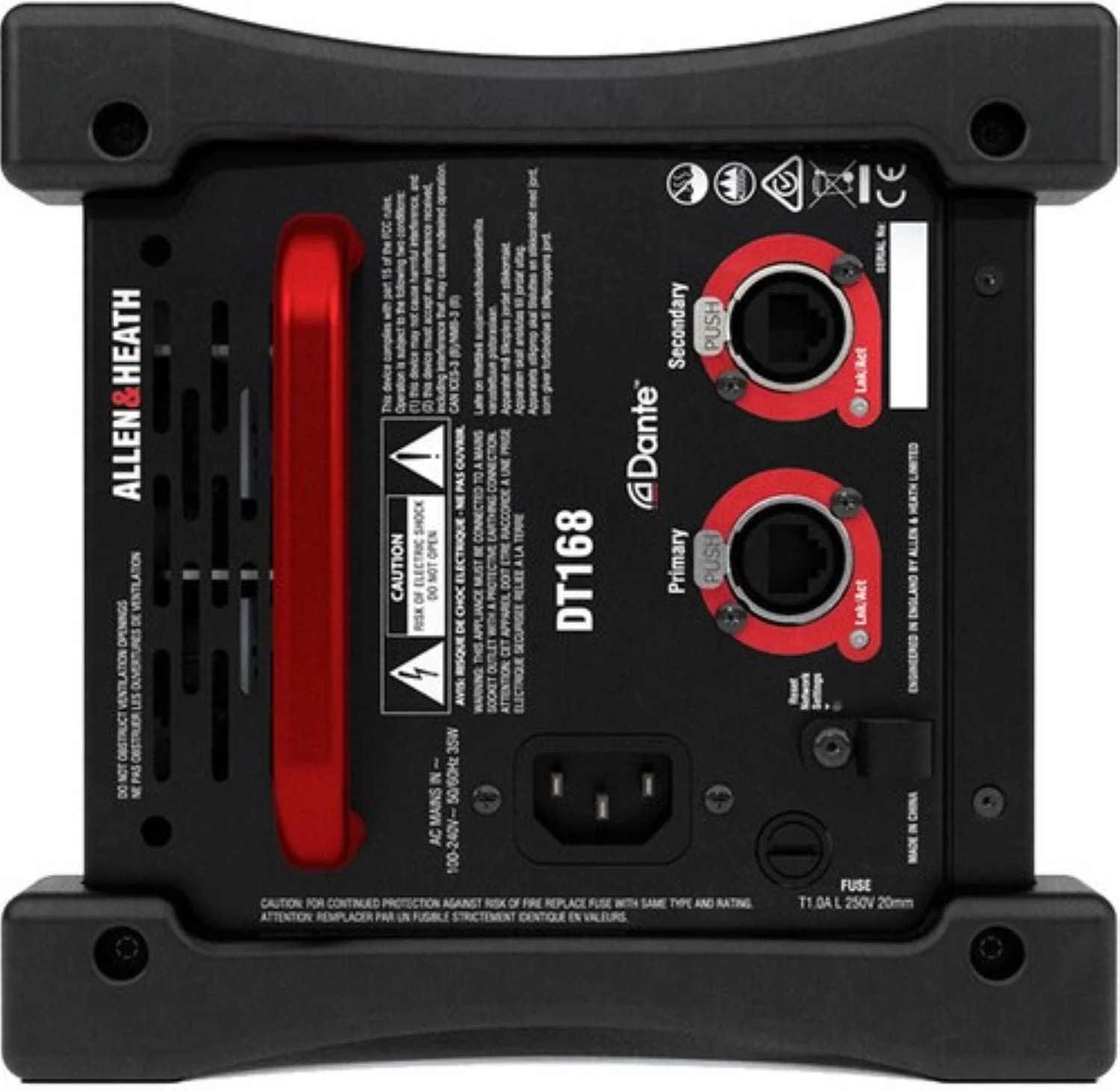

• Primary and Secondary Dante ports with locking EtherCon
• Redundant or Switched mode
• Direct preamp control from dLive, Avantis, AHM-64 and SQ
• Remote control of preamps via DT Preamp Control software for integration with 3rd party systems
• Optional 19-inch rack mount kit available
• Rubber bumpers and carry handle
• AES67 compatible
• Dante Domain Manager ready

Specifications:

• Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
• Mic/Line Preamp: Fully recallable
• Input Sensitivity: -60 to +15dBu
• Analogue Gain: +5 to +60dB, 1dB steps
• Pad: -20dB Active PAD
• Maximum Input Level: +30dBu (PAD in)
• Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
• Mic/Line Channel noise: 22-22kHz, Direct Out @ unbalanced out
• Mic EIN: -127dB with 150Ω source
• Mic/Line Channel THD+N: 22-22kHz, Direct Out @ unbalanced out
• Analogue XLR Outputs: Balanced, Relay protected
• Output Impedance: <75Ω
• Nominal Output: +4dBu = 0dB meter reading
• Maximum Output Level: +22dBu
• Residual Output Noise: -92dBu (muted, 20-20kHz)
• Dante:
  • Sample rate: 48kHz or 96kHz
  • Bit Depth: 24 Bit
  • Gain, Pad, 48v Control: Allen & Heath dLive, Avantis, AHM-64 or SQ system
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Mains Power: 100-240V, 50/60 Hz, 40W max
• Dimensions and Weight (Width x Depth x Height x Weight): 410mm x 190mm x 185mm x 4.6kg (16.1” x 7.5” x 7.3” x 10.1lbs)

Control Surfaces:

• Allen & Heath Avantis Digital Mixer
• Allen & Heath Avantis Solo Digital Mixer
• Allen & Heath SQ-5 Digital Mixer
• Allen & Heath SQ-6 Digital Mixer
• Allen & Heath SQ-7 Digital Mixer
• Allen & Heath QU-5 Digital Mixer
• Allen & Heath QU-6 Digital Mixer
• Allen & Heath QU-7 Digital Mixer
• Allen & Heath SQ5+ Digital Mixer
• Allen & Heath SQ6+ Digital Mixer
• Allen & Heath SQ7+ Digital Mixer
