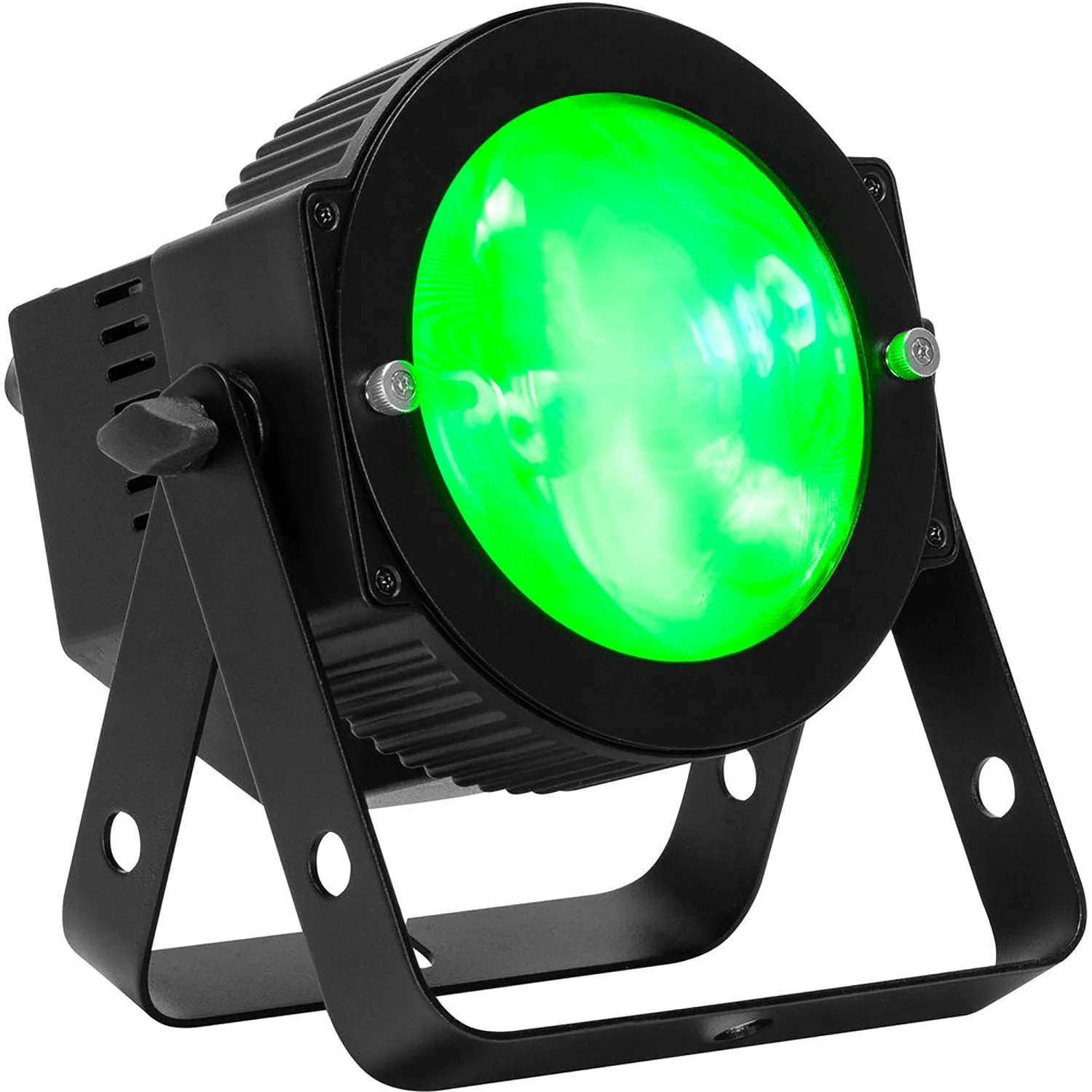

ADJ American DJ DOTZ-PAR-RGBL 35-Degree Beam LED Light Fixture

Drawing on the popularity of Chip On Board (C.O.B.) LED from the Dotz Par fixture, the ADJ Lighting Dotz Par RGBL uses the latest advancements in lighting technology with a RGBL (red, green, blue, lime) C.O.B. LED for a smooth, even field, high CRI output, advanced color mixing and tunable white color temperature control from 2700K to 6500K.

Features:

• Light Source: 16 x 3.5-Watt RGBL C.O.B. LED (4-IN-1: Red, Green, Blue & Lime)
• Linear Color Temperature Control (2700K to 6500K)
• 35° Beam Angle
• 64 built-in Color Macros
• Selectable Dimming Modes, Dim Curves, Strobe effects
• 4-button, DMX digital display on rear panel
• 6 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode, Wireless RF and DMX Controlled
• Supports Remote Device Management
• Wired Digital Communication Network
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Linear, Square, Inv. Square, S-Curve)
• 1200Hz LED Refresh Rate
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%

Specifications:

• Source:
  • Light Source: 16 x 3.5-Watt RGBL C.O.B. LED (4-IN-1: Red, Green, Blue & Lime)
  • 20,000 Hours Rated Life
• Photometric Data:
  • Lumens: 1250
• Effects:
  • 35° Beam Angle
  • Linear Color Temperature Control (2700K to 6500K)
  • Preset Color Temperatures
  • 16-Bit Fine Color Control (Red, Green, Blue & Lime)
  • 64 built-in Color Macros
• Construction/Connections:
  • Plastic construction
  • IEC Locking, In/Out Power connectors
  • Indoor 5-pin, XLR DMX, In/Out sockets
  • Scissor Yoke
• Electrical/Thermal:
  • Multi-voltage operation: AC 100-240V, 50/60Hz
  • Max Power LInk: 30 @120V., 57 @230V.
  • Max power consumption: 36W
  • Fuse protected: T1A/250V (5*20mm)
• Dimensions/Weight:
  • Dimensions (LxWxH): 5.19" x 8.23" x 8.72" (131.8mm x 209mm x 221.44mm)
  • Weight: 4.41lbs. (2kg.)
