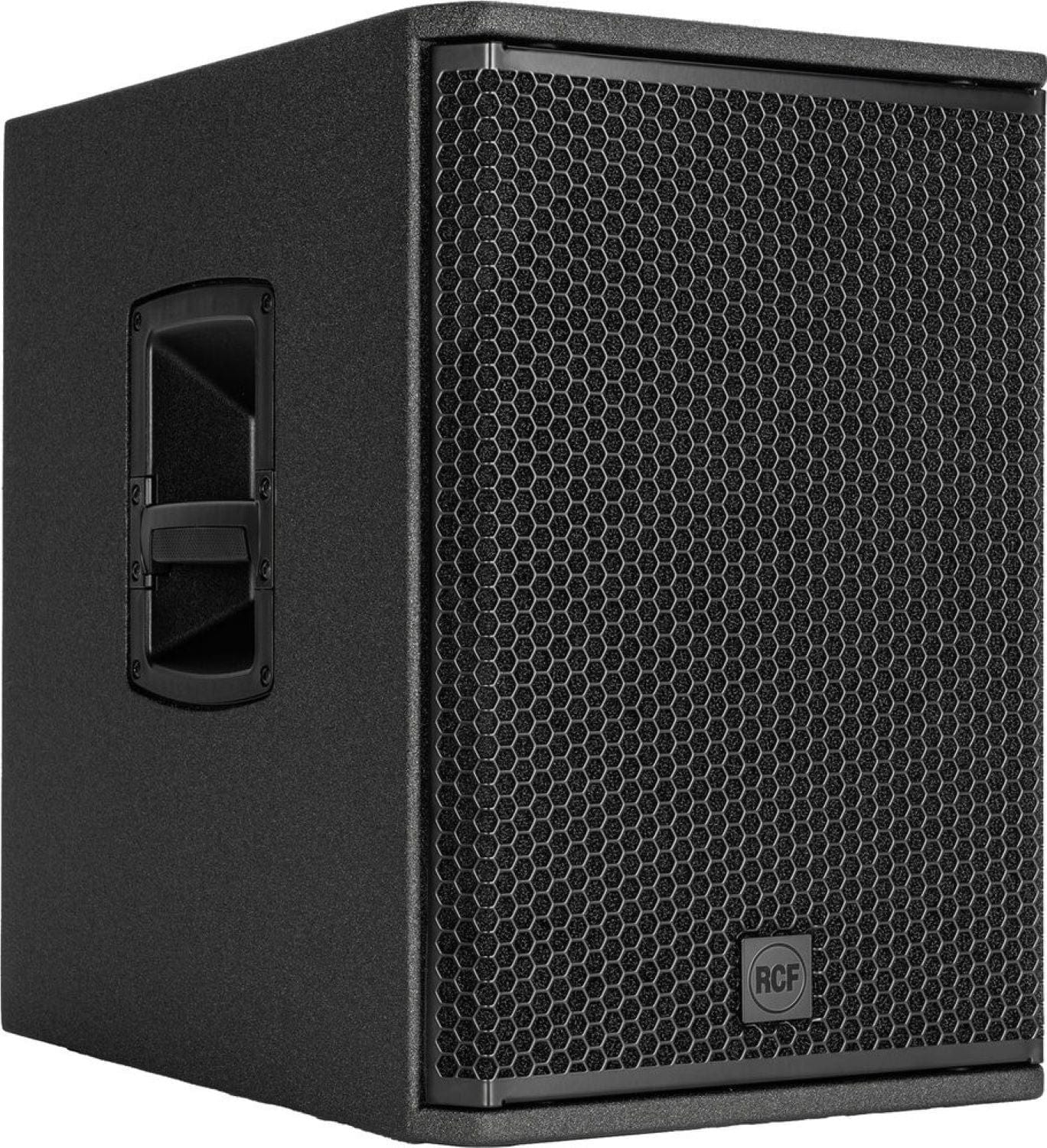

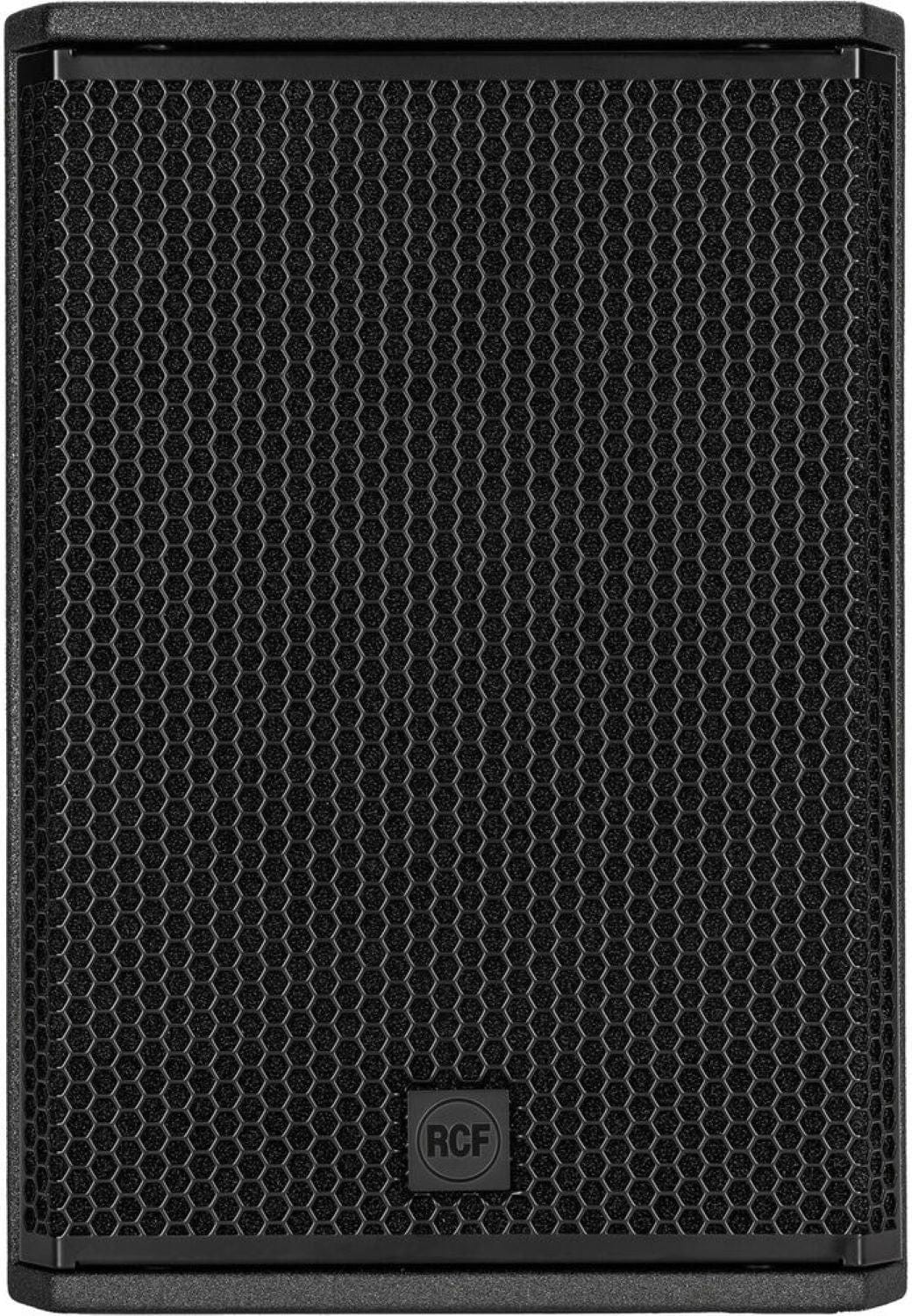

RCF SUB-702AS-MK3 12-Inch Active Subwoofer

The SUB 702-AS mk3 is a portable 12" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 129 dB with exceptional headroom. Designed as the ideal complement for 8" or 10" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 702-AS MK3 is perfect for small to mid-sized venues and portable applications.

Features:

1400 Watt Class-D Amplifier
12” Woofer, bass reflex housing
Stereo Crossover
Switchable Crossover Frequencies
Polarity-reverse switch
Electronic equalization, soft limiter and protection
Stereo XLR input, Stereo XLR signal output
Bass Motion Control excursion management

Specifications:

Acoustical Specifications:
- Frequency Response: 40 Hz ÷ 120 Hz
- Max SPL @ 1m: 129 dB
Transducers:
- Woofer: 13", 2.5" v.c
Input/Output Section:
- Input signal: bal/unbal
- Input connectors: Combo XLR/Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
Processor Section:
- Hi-Pass Frequencies: 110 Hz
- Low-Pass Frequencies: 80 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, EQ, Phase, Xover
Power Section:
- Total Power: 1400 W Peak, 700 W RMS
- Low frequencies: 1400 W Peak, 700 W RMS
- Cooling: Convection
- Connections: VDE
Standard Compliance:
- Safety agency: CE compliant
Physical Specifications:
- Cabinet/Case Material: Baltic birch plywood
- Handles: One each side
- Pole mount/Cap: Yes
- Grille: Steel with clothing
- Color: Black
Size:
- Height: 523 mm / 20.59 inches
- Width: 360 mm / 14.17 inches
- Depth: 515 mm / 20.28 inches
- Weight: 21 kg / 46.3 lbs
Shipping Information:
- Package Height: 565 mm / 22.24 inches
- Package Width: 575 mm / 22.64 inches
- Package Depth: 420 mm / 16.54 inches
- Package Weight: 25 kg / 55.12 lbs
