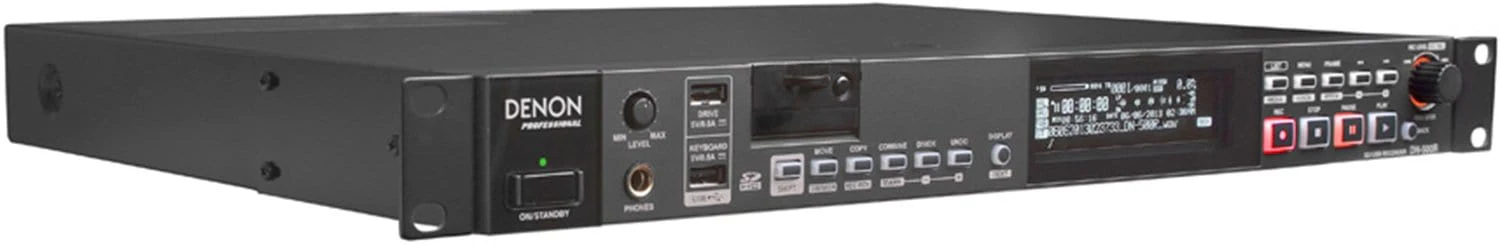

Denon DN-500R SD/USB Recorder

The DN-500R is a robust yet affordable solid state audio recorder. Conveniently tooled in the familiar 1 RU chassis, the DN- 500R further emphasizes Denon Professional’s commitment to providing professional feature-rich installation products, at affordable prices, to the contracting industry. With a bright, highly visible OLED display, SD/SDHC and USB media recording and playback the 500R lends itself to a myriad of applications like houses of worship, education and lecture recording, and more.

Features:

Records to SD/SDHC and USB media in MP3 and WAV (up to 24-bit/96kHz)
Dual Record feature (records to both media options simultaneously for primary and backup recording)
Relay Record feature (continues recording to backup media when primary media is full)
XLR and RCA audio connections (analog and digital)
Timer recording/playback (30 schedules available)
MP3, WAV, AIFF, AAC playback
RS-232c, GPIO, USB keyboard remote control
Front panel USB keyboard connection
EDL marking & file edit functions (Move, Copy, Combine and Divide)
Record Monitor (listen the recorded signal while recording)
Large, bright OLED display
DMP Mark Editor software included (Windows only)
100-230V switching power supply
Removable rack ears

Specifications:

File Format Specifications
- Compatible media: SD/USB memory/USB HDD
- Playable formats, file systems: SD, USB: FAT16/FAT32/HFS+
  - Playable WAV Format
    - Extension: WAV, AIFF, AIF
    - Resolution: 16 bit, 24 bit
    - Sampling frequency: 96, 48, 44.1 kHz
  - Playable MP3 Format
    - Extension: MP3
    - Bit rate: 32 – 320 kbps and VBR
    - Sampling frequency: 48, 44.1 kHz
  - Playable AAC Format
    - Extension: M4A
    - Compression method: AAC-LC
    - Bit rate: 64 – 320 kbps and VBR
    - Sampling frequency: 48, 44.1 kHz
Audio Specifications
- Number of channels: 2 (stereo), 1 (mono)
- Audio frequency characteristics: 20 Hz – 20 kHz (+0.5 dB / –1 dB)
- S/N ratio: More than 89 dB (A-Weighted)
- Total harmonic distortion: Less than 0.01%
- Dynamic range: More than 106 dB (for 24 bit WAV playback)
- Channel separation: Less than –90 dB
- Variable pitch width: –16% – +16%
- Variable trim adjustment width: ±2.0 dB
INPUT - Balanced Analog IN L/R
- Type: XLR (1:GND, 2:Hot, 3:Cold)
- Input level: +4 dBu
- Maximum input level: +24 dBu/+20 dBu/+18 dBu
- Input impedance: 20 kΩ
INPUT - Unbalanced Analog IN L/R
- Type: RCA terminal
- Input level: –10 dBV
- Maximum input level: +10 dBV/+6 dBV/4 dBV
- Input impedance: 10 kΩ
INPUT - Unbalanced Digital IN
- Type: RCA terminal
- Input impedance: 75 Ω
- Standard input level: 0.5 Vp-p
- Format IEC-60958(COAXIAL)
INPUT - Balanced Digital IN
- Type: XLR (1:GND, 2:Hot, 3:Cold)
- Input impedance: 110 Ω
- Standard input level: 3.5 Vp-p
- Format: IEC-60958(AES/EBU)
OUTPUT - Balanced Analog L/R
- Type: XLR (1:GND, 2:Hot, 3:Cold)
- Load impedance: Over 600 Ω
- Output level: +4 dBu at 600 Ω load
- Maximum Output level: +24 dBu/+20 dBu/+18 dBu
OUTPUT - Unbalanced Analog L/R
- Type: RCA terminal
- Load impedance: Over 10 kΩ
- Output level: –10 dBV
- Maximum output level: +10 dBV/+6 dBV/+4 dBV
OUTPUT - Balanced Digital
- Type: XLR (1:GND, 2:Hot, 3:Cold)
- Output impedance: 110 Ω
- Standard output level: 3.0 Vp-p
- Format: IEC-60958(AES/EBU)
OUTPUT - Unbalanced Digital
- Type: RCA terminal
- Output impedance: 75 Ω
- Standard output level: 0.5 Vp-p
- Format: IEC-60958(COAXIAL)
OUTPUT - Headphone Out
- 20 mW/32 Ω
Other
- Maximum storage capacity: Up to 2 TB
- Maximum file size: 2 GB
- Maximum number of files: 2000 files (for 1 folder)
- Maximum number of folders: 1000 folders
- Maximum number of folder hierarchies: 8 (under the root directory)
Environmental
- Operating temperature: 5 – 35 °C
- Operating humidity: 25 – 85 %, no condensation
- Storage temperature: –20 – 60 °C
General
- Power supply (U.S.A and Canada models): AC 120 V, 60 Hz
- Power Supply (European, U.K and Asia/Pacific models): AC 230 V, 50/60 Hz
- Power consumption: 30W (typical), 0.4W (standby)
- Dimensions (L x W x H): 19" x 13" x 1.74" (483 x 330 x 44 mm)
- Weight: 7 lbs 14.99 oz (3.6 kg)
