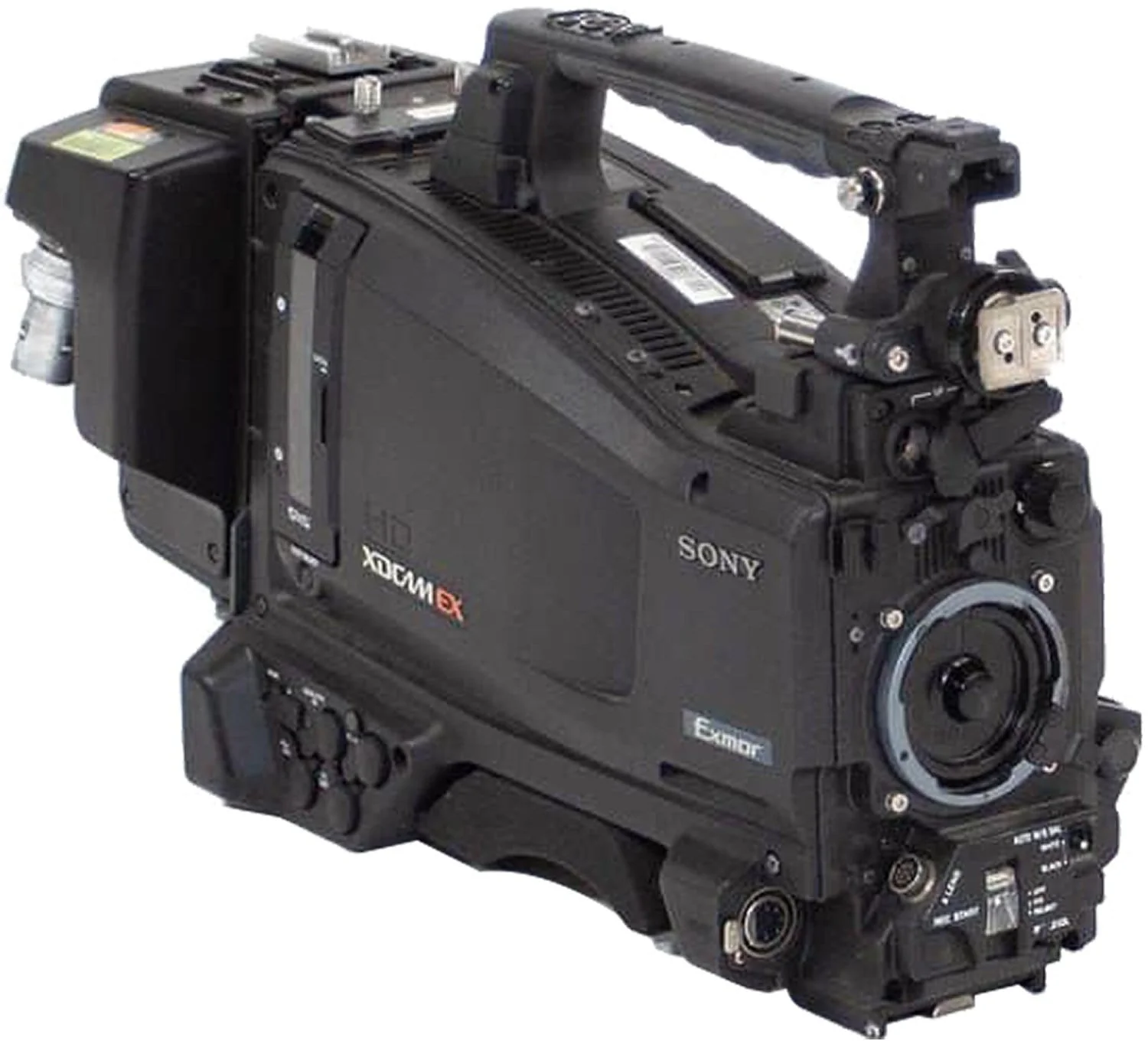

Sony PMW-320K HD Camera Package

Available from Mid-September 2026

Package include :

1x PMW320K HD Camcorder [CMOS 1/2"]
1x HXCUTX70 Triax Camera Control Unit with Integrated Control Panel
1x LENS1216XF 16x 1/2" Camera Lens
1x Triax Camera Adapter
1x Color LCD Modular Viewfinder
1x DXFC50WA 5" HD Viewfinder
1x CFH3 Focus Demand
1x FMMX1 Manual Focus Module for Fujinon XA16sX Lens
1x ERD20A Zoom Demand
1x Camera XLR5 Microphone
1x Single-Ear Intercom Headset for Camera
1x Sony CCU Tally Adapter
1x Sony CCU 2-Channel Intercom and Red/Green Tally Breakout Cable
1x Cable Spool 13" [Canare]
1x 64 GB SXS Memory Card with Case
1x Quick Release Tripod Plate
1x 32"x48"x32" Camera Case

The powerful, affordable PMW-320 is equipped with the cutting-edge imaging technology of Exmor full-HD CMOS sensors and uses SxS memory cards as the recording media. Exceptionally low power consumption makes it environmentally friendly. The PMW-320 supports multiple frame rate recording such as 59.94i, 50i, and native 23.98P and 25P as well as being 1080i/720P switchable. There is also a choice of a 35Mb/s High Quality mode, 25Mb/s HDV 1080i compatible mode and 25Mb/s Standard Definition DVCAM recording.

Features:

Selectable format and bit rates
Multiple-format recording 1080/720 and interlace/progressive switchable operation
Three Exmor Full-HD CMOS sensors
Impressive body design
Low power consumption
Lens package choice
ALAC (Automatic Lens Aberration Compensation)
23.98p native recording
Slow & Quick Motion function
Slow Shutter function
Selectable gamma curves
Interval Recording function
Frame Recording function
ATW (Auto Tracing White Balance) and Hold
Image Inverter
Turbo gain
DVCAM recording and playback
Picture Cache Recording
Freeze Mix function
Four-channel audio
Scene File system
Viewfinder with 3.5-inch colour LCD
HDMI connector
50-pin interface and Digital Extender function
Camera adaptor for multi-camera operation
Affordable MPEG TS Option for field and satellite transmission

Specifications:

General
- Mass:
  - Approx. 3.2 kg (without lens)
  - Approx. 7 lb 1 oz (without lens)
  - Approx. 6.3 kg (with LCD VF, AF lens, Mic, BP-GL95 battery, one SxS PRO memory card)
  - Approx. 13 lb 14 oz (with LCD VF, AF lens, Mic, BP-GL95 battery, one SxS PRO memory card)
- Dimensions (W x H x D):
  - 124 x 269 x 332 mm (excluding protrusions, body only)
  - 5 x 10 5/8 x 13 1/8 inches (excluding protrusions, body only)
- Power Requirements: DC 12 V
- Power Consumption:
  - Approx.18 W (with LCD VF, AF lens, Mic while recording)
  - Approx.15 W (body while recording)
- Operating Temperature:
  - 0°C to 40°C
  - 32°F to 104°F
- Storage Temperature:
  - -20°C to +60°C
  - -4°F to +140°F
- Continuous Operating Time: Approx. 310 min with BP-GL95 battery
- Recording Format (Video)
  - MPEG-2 Long GOP:
    - HQ mode: VBR, 35 Mbps max., MPEG-2 MP@HL
    - SP mode: CBR, 25 Mbps, MPEG-2 MP@H-14
    - SD mode (option): DVCAM
- Recording Format (Audio):
  - HD mode: Linear PCM (4 ch, 16-bit, 48-kHz)
  - SD mode: Linear PCM (2 ch, 16-bit, 48-kHz)
- Recording/Playback Time (MPEG HD)
  - HQ Mode:
    - Approx. 100 min with SBP-32 (32 GB) memory card
    - Approx. 50 min with SBP-16 (16 GB) memory card
    - Approx. 25 min with SBP-8 (8 GB) memory card
  - SP/SD Mode:
    - Approx. 140 min with SBP-32 (32 GB) memory card
    - Approx. 70 min with SBP-16 (16 GB) memory card
    - Approx. 35 min with SBP-8 (8 GB) memory card
- Recording Frame Rate
  - NTSC
  - HQ mode:
    - 1920 x 1080/59.94i, 29.97p, 23.98p
    - 1440 x 1080/59.94i, 29.97p, 23.98p
    - 1280 x 720/59.94p, 29.97p, 23.98p
  - SP mode: 1440 x 1080/59.94i, 23.98p (2-3 pull down)
  - SD mode: 720 x 480/59.94i, 29,97PsF
  - PAL area
  - HQ mode:
    - 1920 x 1080/50i, 25p
    - 1440 x 1080/50i, 25p
    - 1280 x 720/50p, 25p
  - SP mode: 1440 x 1080/50i
  - SD mode: 720 x 576/50i, 25PsF
Lens
- Lens Mount: Sony 1/2-inch type bayonet mount
- Zoom Ratio:16x (optical), servo/manual (AF lens for PMW-320K)
- Focal Length: f = 5.8 mm to 93 mm (equivalent to 31.4 mm to 503 mm on 35 mm lens)
- Iris: F1.9 to F16 and Close, Auto/Manual selectable
- Focus:
  - AF/MF/Full MF selectable
  - 800 mm to ∞ (MACRO OFF)
  - 50 mm to ∞ (MACRO ON, Wide)
  - 782 mm to ∞ (MACRO ON, Tele)
- Filter Diameter: M82 mm, pitch 0.75 mm (on lens)
Input/Output
- Genlock Input: BNC (x1)
- Timecode Input: BNC (x1)
- Audio Input: XLR-type 3-pin (female) (x2), Line/Mic/Mic +48 V selectable
- Mic Input: XLR-type 5-pin
- SDI Output: BNC (x1), HD-SDI/SD-SDI selectable
- Composite Output: BNC (x1), NTSC or PAL, COMPONENT Y
- Audio Output: XLR-type 5-pin
- Timecode Output: BNC (x1)
- Earphone Output: Stereo mini jack (x1)
- Speaker Output: Monaural
- DC Input: XLR-type 4-pin
- DC Output: 4-pin
- Lens: 8-pin
- Remote: 8-pin
- i.LINK: IEEE 1394, 4-pin (x1), HDV (HDV 1080i )/DVCAM stream input/output, S400
- USB: USB device, Mini-B (x1)
- HDMI: A type (x1)
Camera Section
- Imager: 3-chip 1/2-type "Exmor" Full HD CMOS
- Effective Picture Elements: 1920 (H) x 1080 (V)
- Optical System: F1.6 prism system
- Built-in Optical Filters: 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
- Shutter Speed (Time): 1/60 sec to 1/2,000 sec + ECS *2
- Shutter Speed (Slow Shutter (SLS)): 2, 3, 4, 5, 6, 7, 8, 16, 32, 64-frame accumulation
- Slow & Quick Motion Function:
  - 720p: Frame rate selectable from 1 fps to 60 fps
  - 1080p: Frame rate selectable from 1 fps to 30 fps
- Sensitivity (2000 lx, 89.9% reflectance):
  - F10 (typical) (1920 x 1080/59.94i mode)
  - F11 (typical) (1920 x 1080/50i mode)
- Minimum Illumination: 0.05 lx (typical) (1920 x 1080/59.94i mode, F1.6, +42 dB gain, with 64-frame accumulation)
- White Balance: Preset (3200K), Memory A, Memory B/ATW
- Gain Selection: -3, 0, 3, 6, 9, 12, 18, 24 dB
- S/N Ratio: 54 dB (Y) (typical)
- Horizontal Resolution: 1,000 TV lines or more (1920 x 1080i mode)
Viewfinder
- Viewfinder: 3.5-inch *3 type color LCD monitor: approx. 921,000 effective pixels, 640 (H) x 3 (RGB) x 480 (V), 16:9, hybrid type
Other Equipment
- Built-in LCD Monitor: Black & White LCD (Audio level, TC, battery and media remaining capacity)
Supplied Accessories
- Supplied Accessories:
- Viewfinder (1)
- Shoulder strap (1)
- Stereo microphone (1)
- Wind-screen (1)
- Cold shoe kit (1)
- Lens mount cap (1)
- Flange back adjustment chart (1)
- CD-ROM: Utility software (1)
- Operating instructions in PDF (1)
- Operating instructions (English) (1)
- Operating instructions (Japanese) (1)
- SxS Device driver software end-user license agreement (1)
- Auto focus lens (1)

Sony

Price

Collections

Sony LDM-1750W 17-Inch LCD Monitor

Sony HDCU-1500 Camera Control Unit for HDC-1500

Sony VPLFHZ85/W WUXGA 7300 Lumen Laser 3LCD Projector (White)

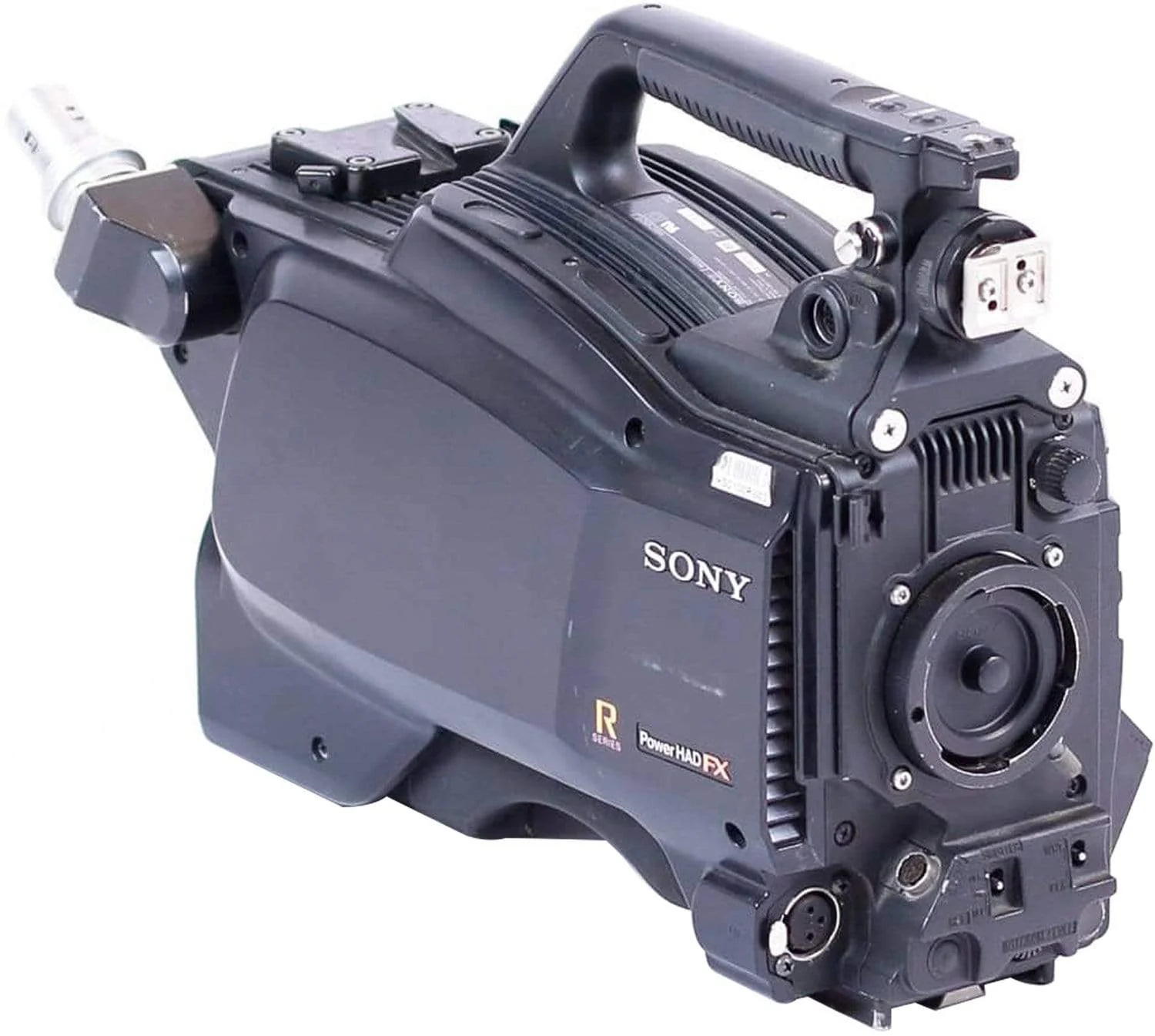

Sony HSC-100R Camera Package
